Installation

INSTALLATION

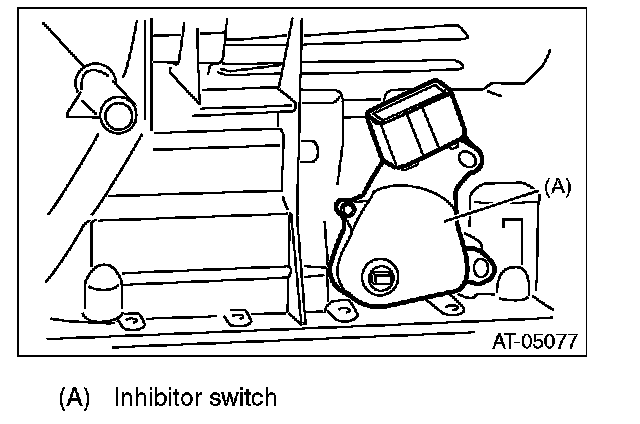

1) Install the inhibitor switch to the transmission case.

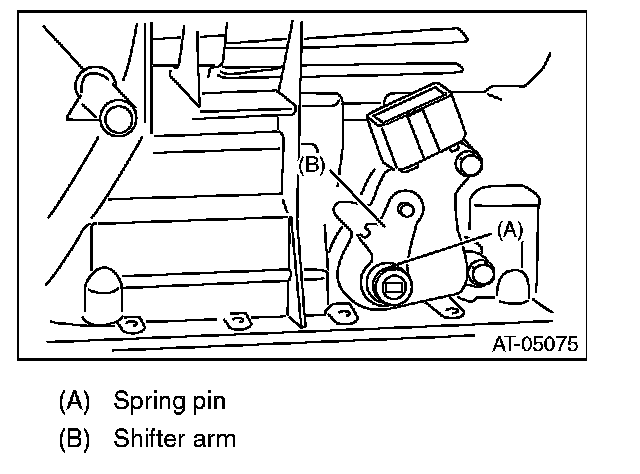

2) Install the shifter arm and fix with the spring pin.

NOTE:
Use new spring pin.
ST 398791600 REMOVER





3) Move the shifter arm to the neutral position.

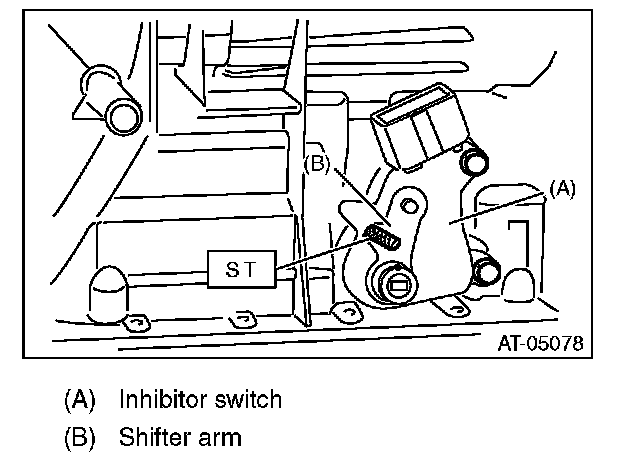

4) Using the ST, tighten the two bolts holding the inhibitor switch.

Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)

ST 499267300 STOPPER PIN

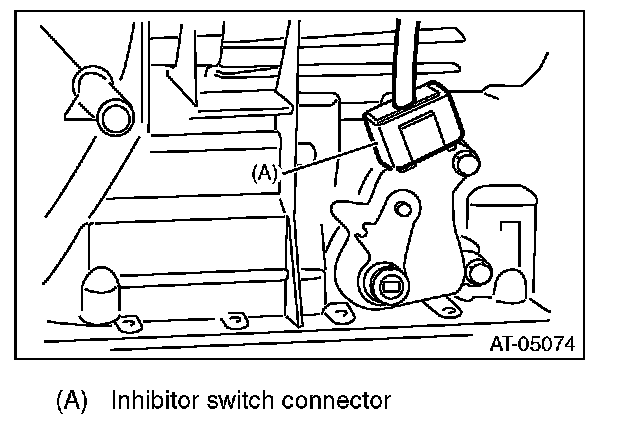

5) Connect the inhibitor switch connector to the inhibitor switch.

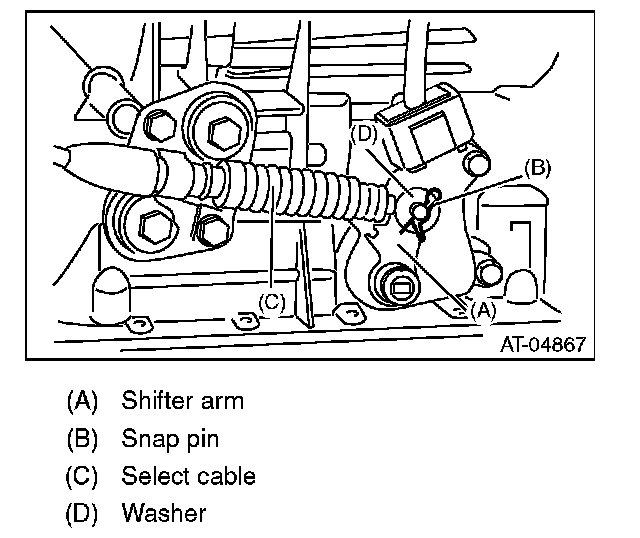

6) Install the select cable to the shifter arm.
7) Install the plate assembly to the transmission case.

Tightening torque:
T: 25 Nm (2.5 kgf-m, 18.4 ft-lb)





8) Install the washer and snap pin to the shifter arm.





9) Install the center exhaust pipe. (non-turbo model)
10) Install the center exhaust pipe. (turbo model)
11) Lower the vehicle.
12) Connect the battery ground terminal.
13) Check the inhibitor switch. Testing and Inspection
