Removal
Drive PlateREMOVALNON-TURBO MODEL 1)
Remove the transmission assembly from the vehicle.
2)

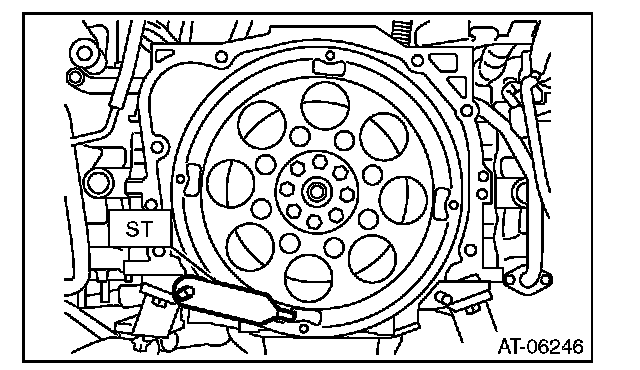

Use the ST to lock the crankshaft, and remove the drive plate.
ST 498497300 CRANKSHAFT STOPPER
TURBO MODEL 1)
Remove the transmission assembly from the vehicle.
2)
Use the ST to lock the crankshaft, and remove the drive plate.
ST 498497100 CRANKSHAFT STOPPER
