Power Window Switch: Service and Repair

Power Window Control Switch

REMOVAL

1. MAIN SWITCH
1. Disconnect the ground cable from battery.
2. Remove the power window switch panel.

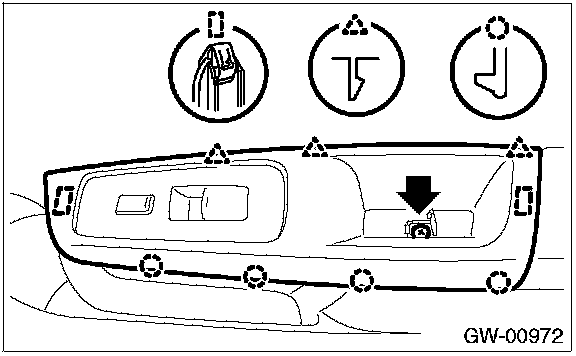

1. Open the cover and remove the screws.

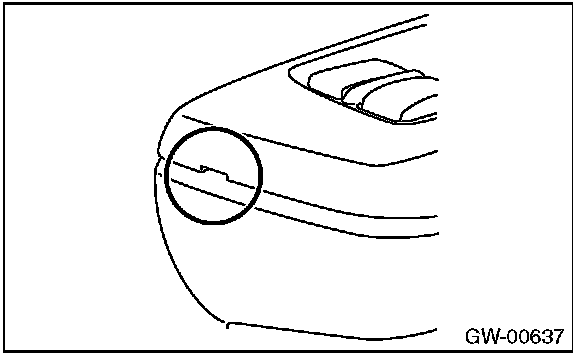

2. Lift up the tip of switch panel by using a plastic remover.

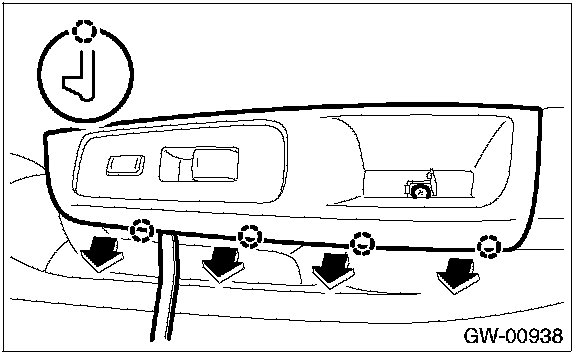

3. Disengage the end face tabs by using a plastic remover.







4. Remove the power window switch panel.

3. Disconnect the main switch connector.
4. Remove the screws to remove the power window main switch assembly.

2. SUB-SWITCH
1. Remove the power window switch panel.







1. Open the cover and remove the screws.

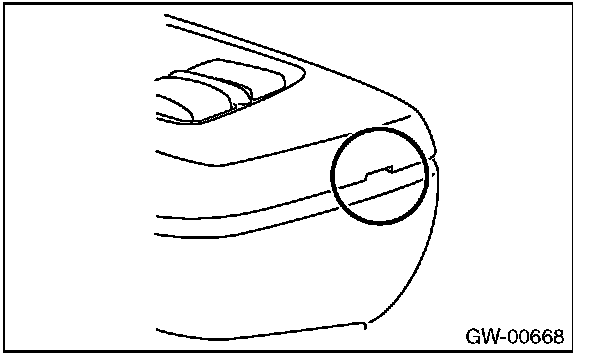

2. Lift up the tip of switch panel by using a plastic remover.







3. Disengage the end face tabs by using a plastic remover.







4. Remove the power window switch panel.

2. Disconnect the power window sub-switch connector.
3. Remove the screws to remove the power window sub-switch assembly.

INSTALLATION

CAUTION: After installation of main switch, always perform the reset operation A (initial setting). (model with driver's side AUTO UP function) Failure to do so may cause the improper activation of auto-reverse operation for pinching hazard prevention. [Ref. to RESET OPERATION A, INSPECTION, Power Window System.] Testing and Inspection

Install each part in the reverse order of removal.
