Rear Door Window Regulator: Service and Repair
Rear Regulator and Motor AssemblyREMOVAL 1.
Remove the rear door glass.
2.

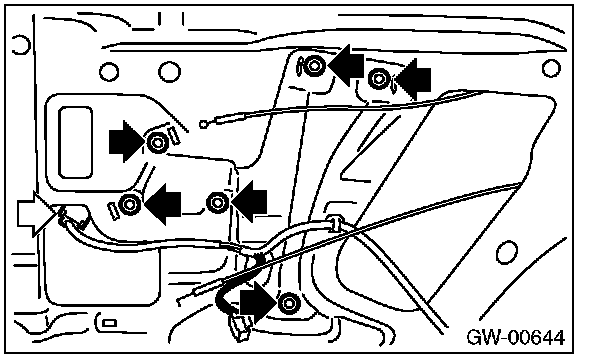

Disconnect the motor connector.
3.
Remove the bolts, and then remove the rear regulator and regulator assembly.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to REAR DOOR GLASS, COMPONENT, General Description.]
