Inspection

Brake Fluid

INSPECTION

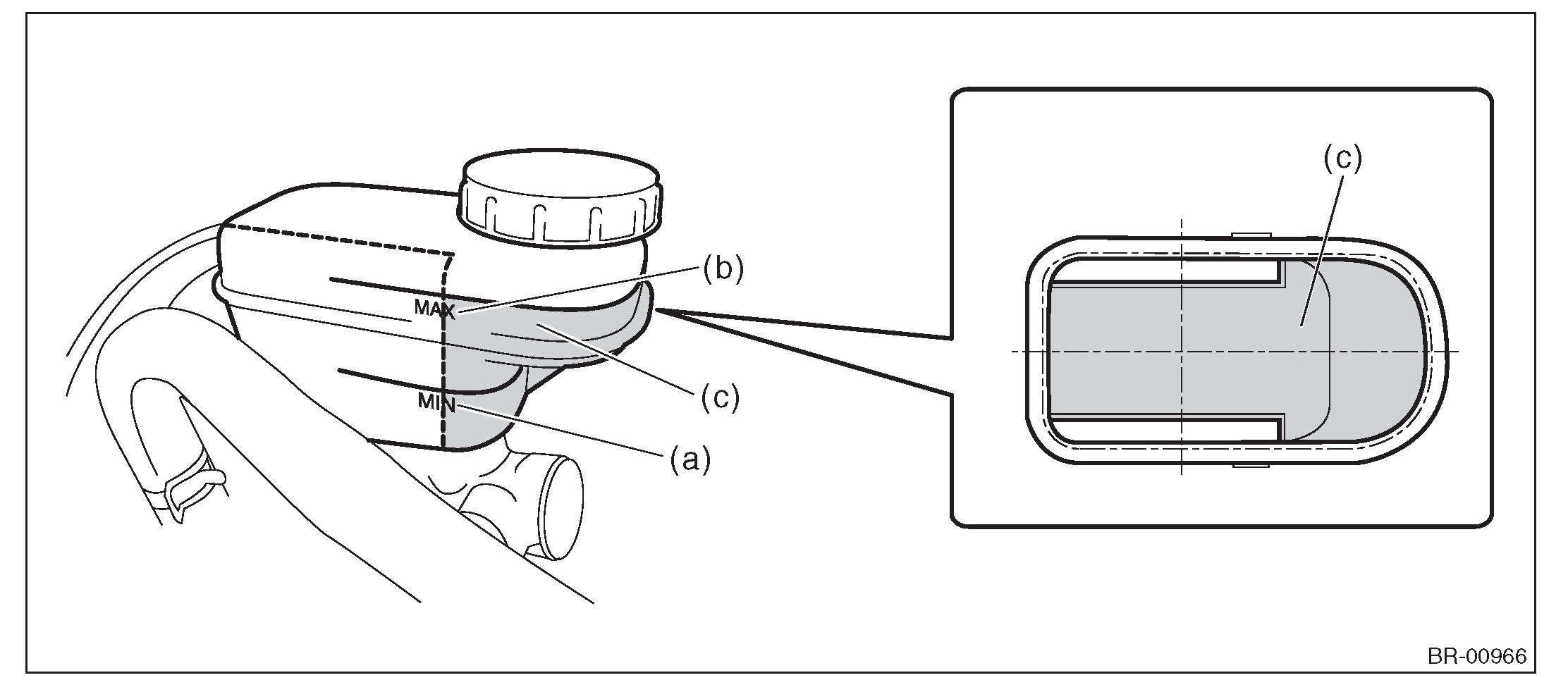

1) Check that the amount of brake fluid is between the lines of "MIN" (a) and "MAX" (b) from a straight view or within 90° to the right and left forward.
If out of the specified range, refill with brake fluid (c) or drain it.
If the brake fluid level is close to "MIN", check the brake pad for wear and refill with brake fluid.

CAUTION:
Always check the level using the specified direction because there is a partition in the reservoir tank.





2) Check the fluid for discoloration. If the fluid is extremely discolored, replace with the new fluid.
