Timing Cover

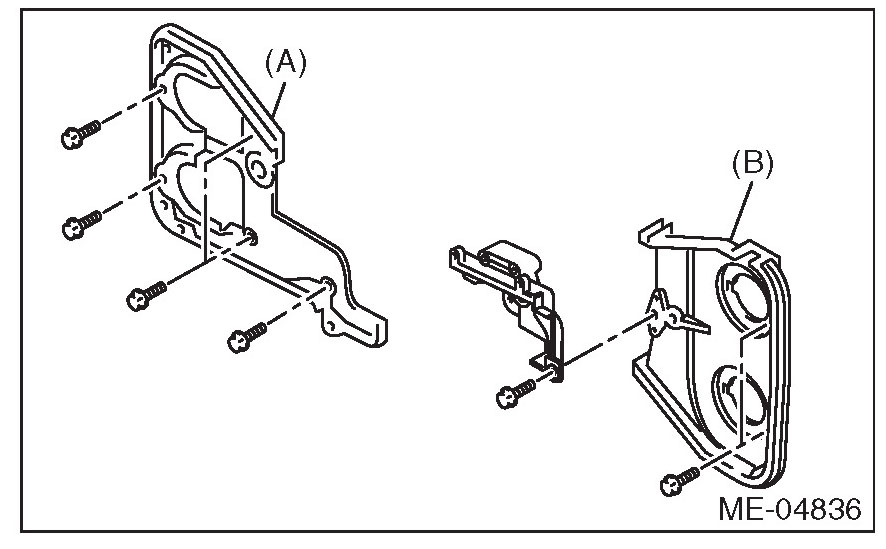

Bolts For Timing Belt Cover No. 2 RH (A) and No. 2 LH (B)
5 Nm (0.5 kgf-m, 3.7 ft-lb)

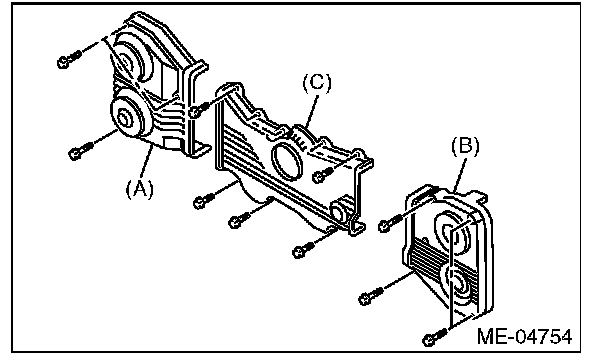

Front Timing Belt Cover Bolts
First step: Cover C
5 Nm (0.5 kgf-m, 3.7 ft-lb)
Second step: Cover B
5 Nm (0.5 kgf-m, 3.7 ft-lb)
Third step: Cover A
5 Nm (0.5 kgf-m, 3.7 ft-lb)
