Passenger Assist Handle: Service and Repair

Assist Grip

REMOVAL

Remove the assist grip assembly.

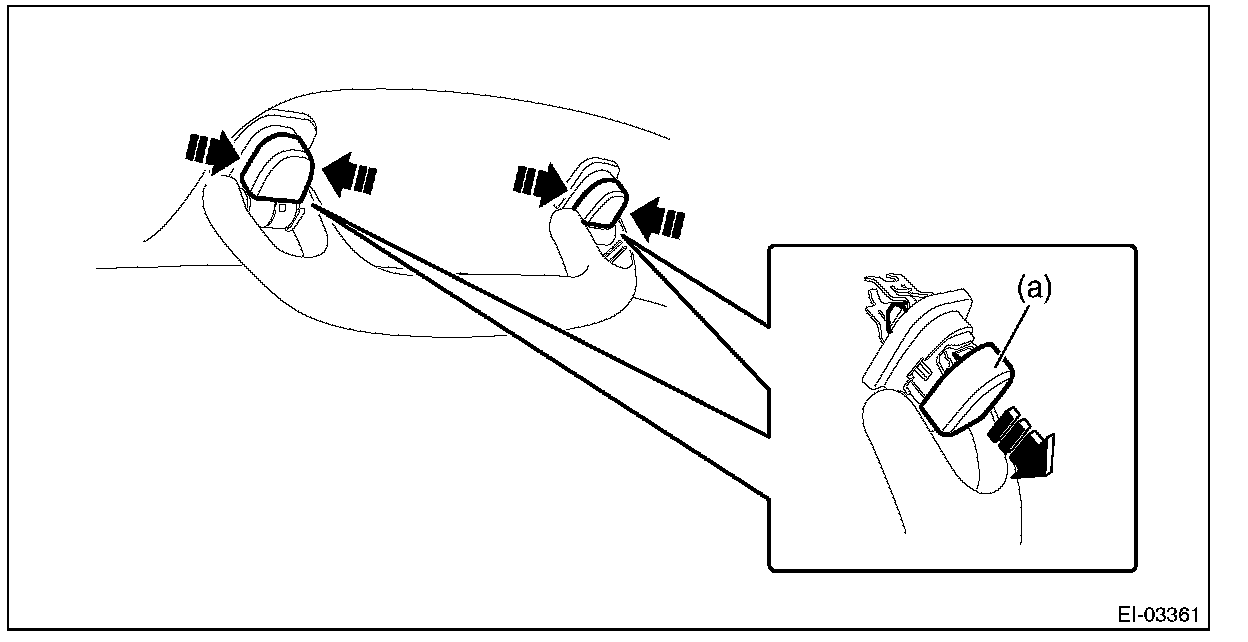

1. Remove the cap (a) by pulling the both sides of the cap (a) using a flat tip screwdriver wrapped with a protection tape.
2. Pull the assist grip toward you (to the vehicle center) and remove the metal clip from the bracket.







INSTALLATION

Install each part in the reverse order of removal.
