Crankshaft Gear/Sprocket: Service and Repair

Crank Sprocket

REMOVAL

NOTE:
When replacing a single part, perform the work with the engine assembly installed to body.
1) Remove the chain cover.
2) Remove the timing chain.

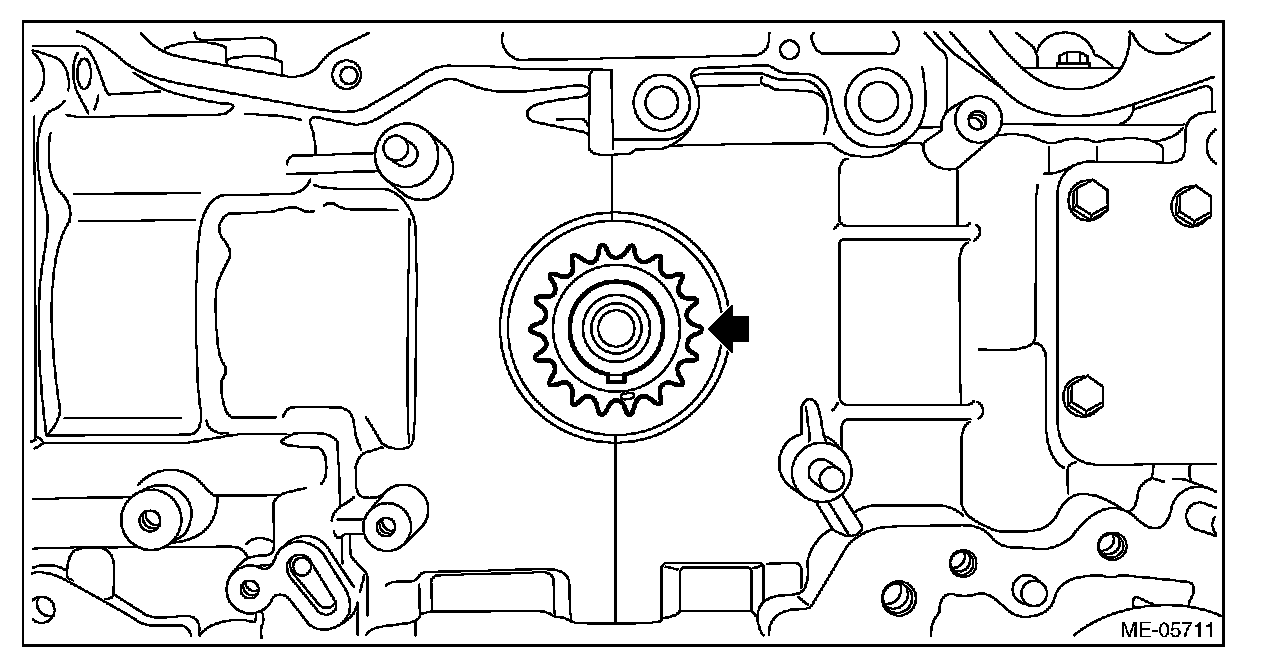

3) Remove the crank sprocket.





INSTALLATION

1) Install the crank sprocket.

NOTE:
The direction of installation is not specified for the crank sprocket.





2) Install the timing chain.
3) Install the chain cover.

INSPECTION

1) Check the crank sprocket teeth for abnormal wear and scratches.
2) Make sure there is no free play between crank sprocket and key.
