Assembly

ASSEMBLY

1) Clean all the parts before assembly.
2) Apply Multemp D or equivalent to the sliding portion of each part.
3) Assemble in the reverse order of disassembly.

NOTE:

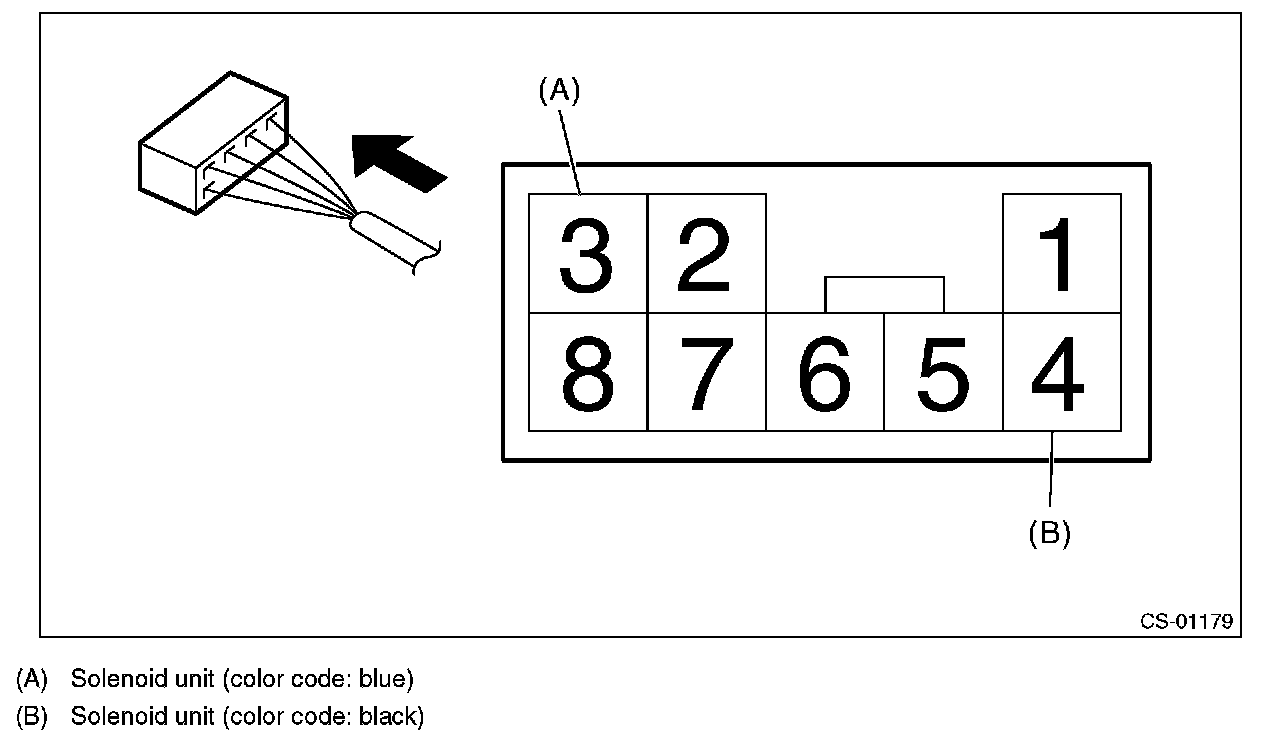

Insert the solenoid unit terminals to the harness connector.





4) After installation, check the following points.
^ The select indicator matches the select lever position when the select lever is changed from "P" range to "D" range.
^ The select lever position and the position mark match each other.
^ Operating force to move the select lever from "P" to "D" range.
