Installation
INSTALLATION 1)

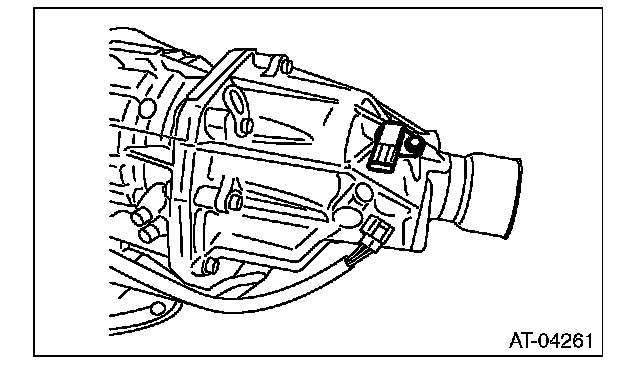

Install the rear
vehicle speed sensor.
NOTE: Use new O-rings.
Tightening torque:
7 Nm (0.7 kgf-m, 5.2 ft-lb)
2)

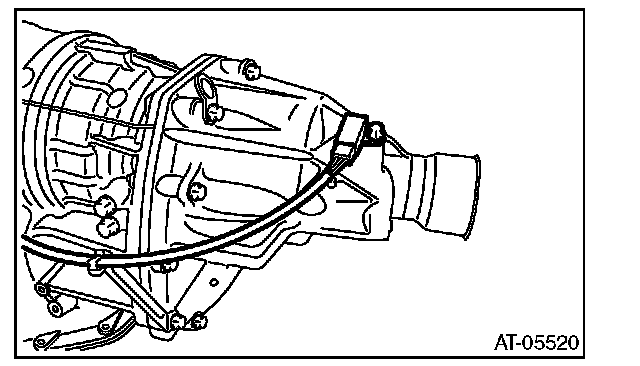

Connect the rear
vehicle speed sensor connector.
3)
Install the heat shield cover.
4)
Tighten the bolts which connect the front exhaust pipe and rear exhaust pipe.
Tightening torque:
18 Nm (1.8 kgf-m, 13.3 ft-lb)
5)
Lower the vehicle.
