Installation
INSTALLATIONCROSSMEMBER AND CUSHION RUBBER
1) Install the transmission cushion rubber to the transmission, and tighten the bolt (A).
2) Attach the transmission cushion rubber to the center crossmember, and tighten nut (B).
Tightening torque:
Bolt (A)
35 Nm (3.6 kgf-m, 25.8 ft-lb)
Nut (B)
35 Nm (3.6 kgf-m, 25.8 ft-lb)

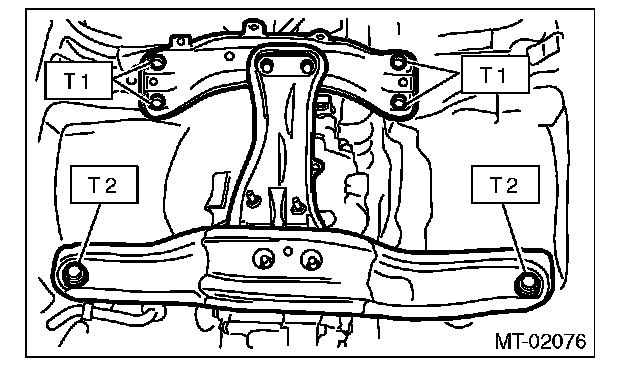

3) Install the front crossmember and rear crossmember.
Tightening torque:
T1: 75 Nm (7.6 kgf-m, 55.3 ft-lb)
T2: 140 Nm (14.3 kgf-m, 103.3 ft-lb)
4) Remove the transmission jack.
5) Install the heat shield cover.
6) Install the front and center exhaust pipe.
7) Install the front under cover.
8) Lower the vehicle.
9) Connect the battery ground terminal.
