Removal

Transmission Mounting System

REMOVAL

CROSSMEMBER AND CUSHION RUBBER

1) Disconnect the ground cable from battery.
2) Lift up the vehicle.
3) Remove the front under cover.
4) Remove the front and center exhaust pipes.

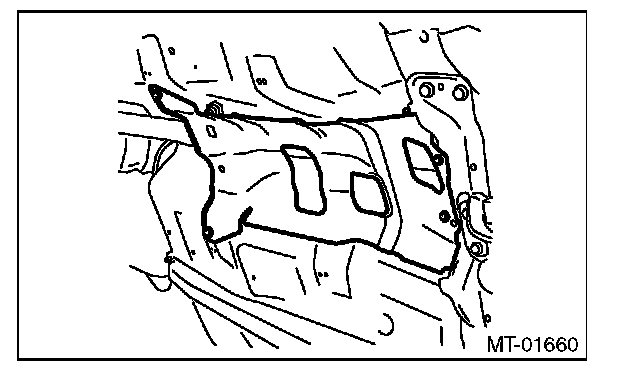

5) Remove the heat shield cover.

6) Set the transmission jack.

CAUTION:
Always support the transmission case with a transmission jack.

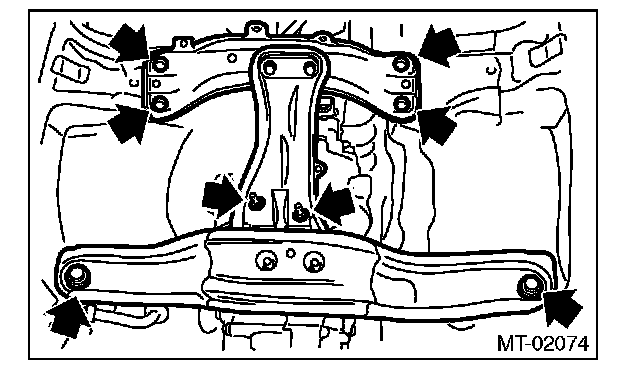

7) Remove the front crossmember and the rear crossmember.

8) Remove the transmission cushion rubber.
