Case: Service and Repair
Air Breather HoseREMOVAL
FRONT DIFFERENTIAL SIDE
1) Remove the air intake boot assembly.

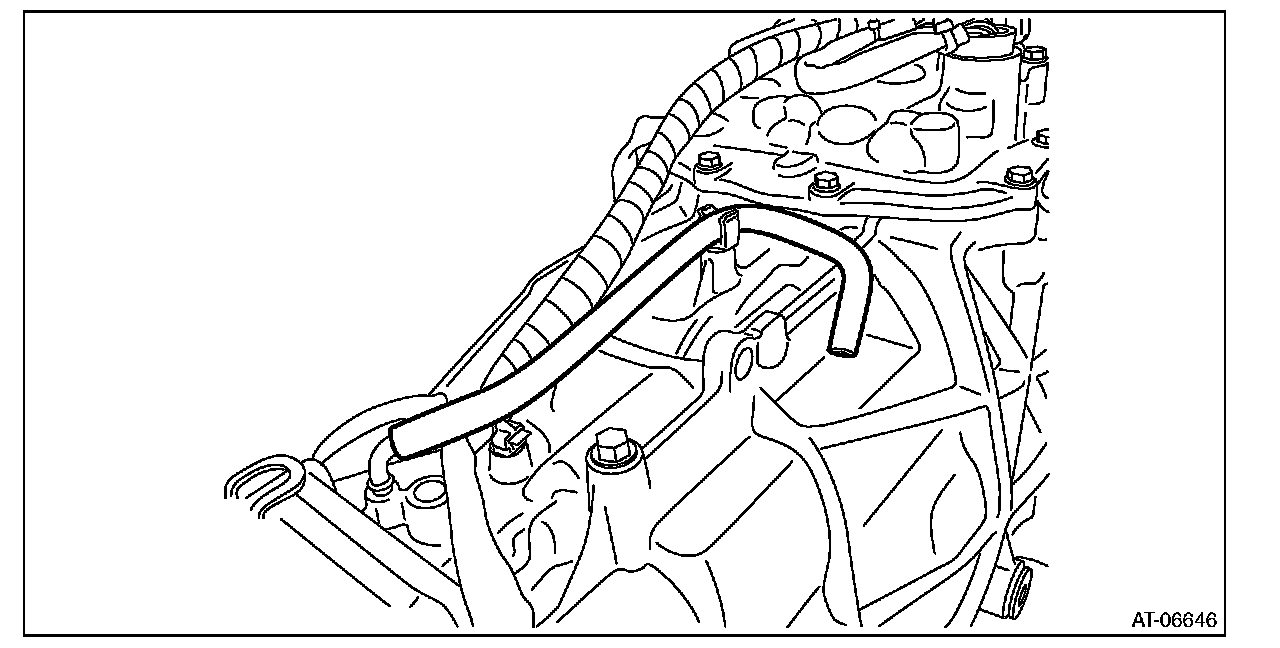

2) Remove the air breather hose.
TRANSMISSION CASE SIDE

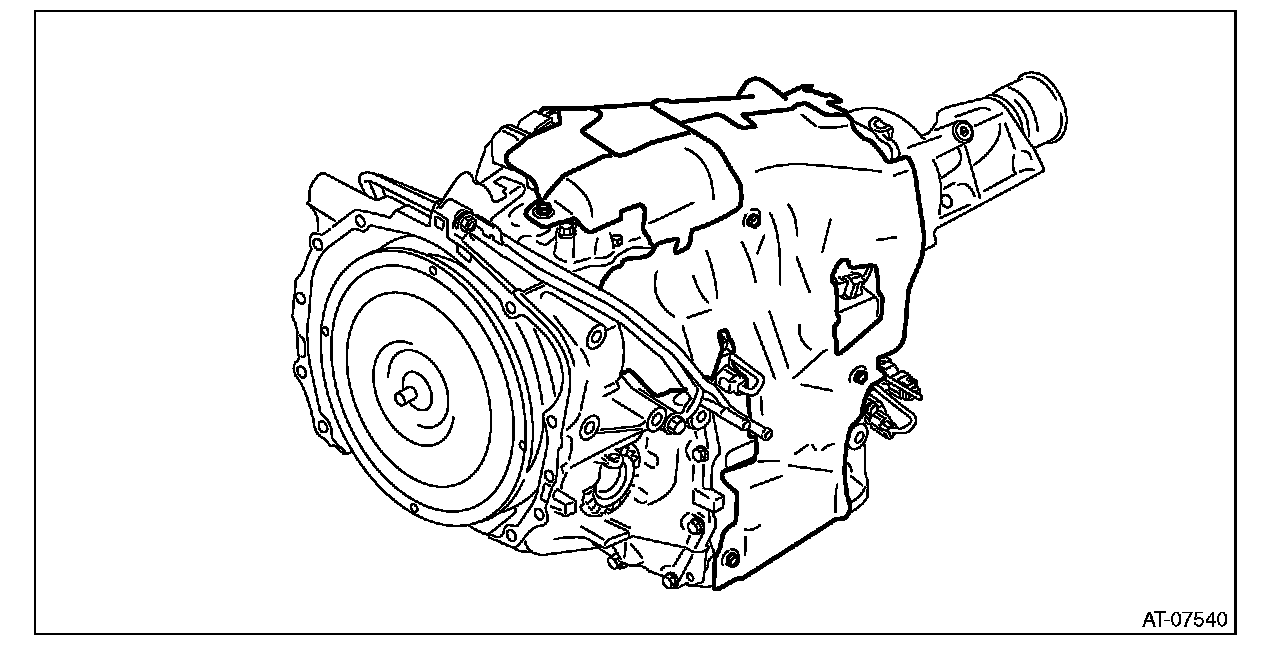

1) Remove the transmission assembly.
2) Remove the transmission case cover.

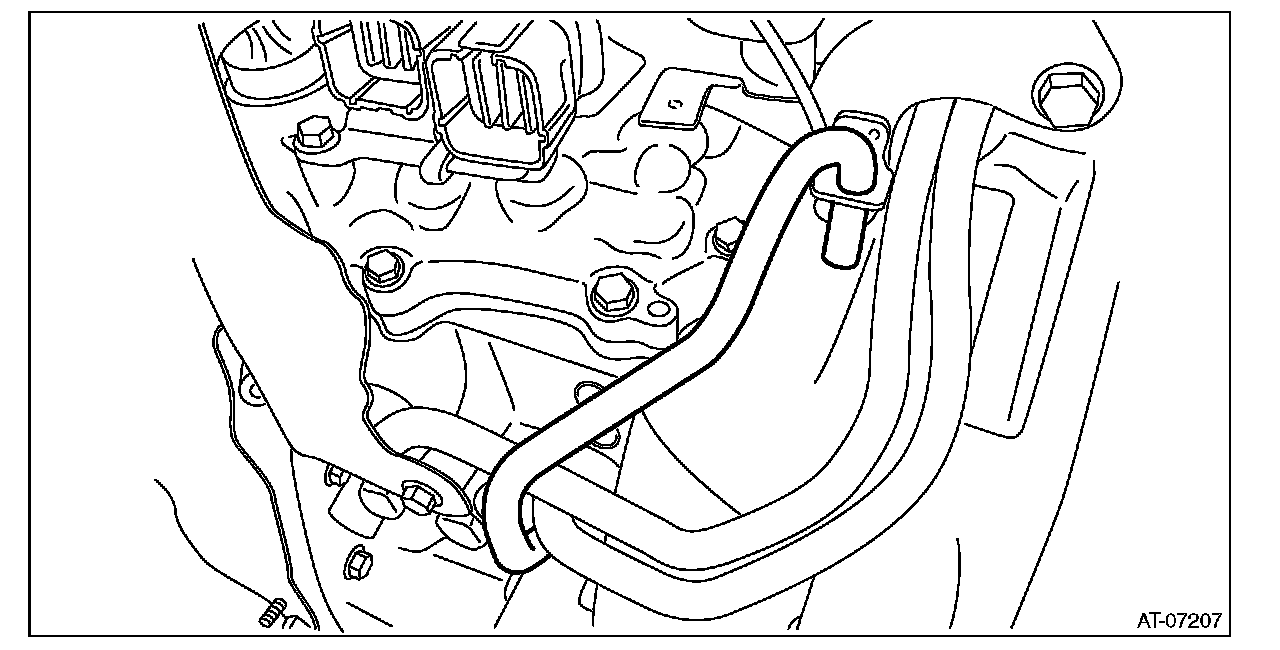

3) Remove the air breather hose.
INSTALLATION
FRONT DIFFERENTIAL SIDE
Install in the reverse order of removal.

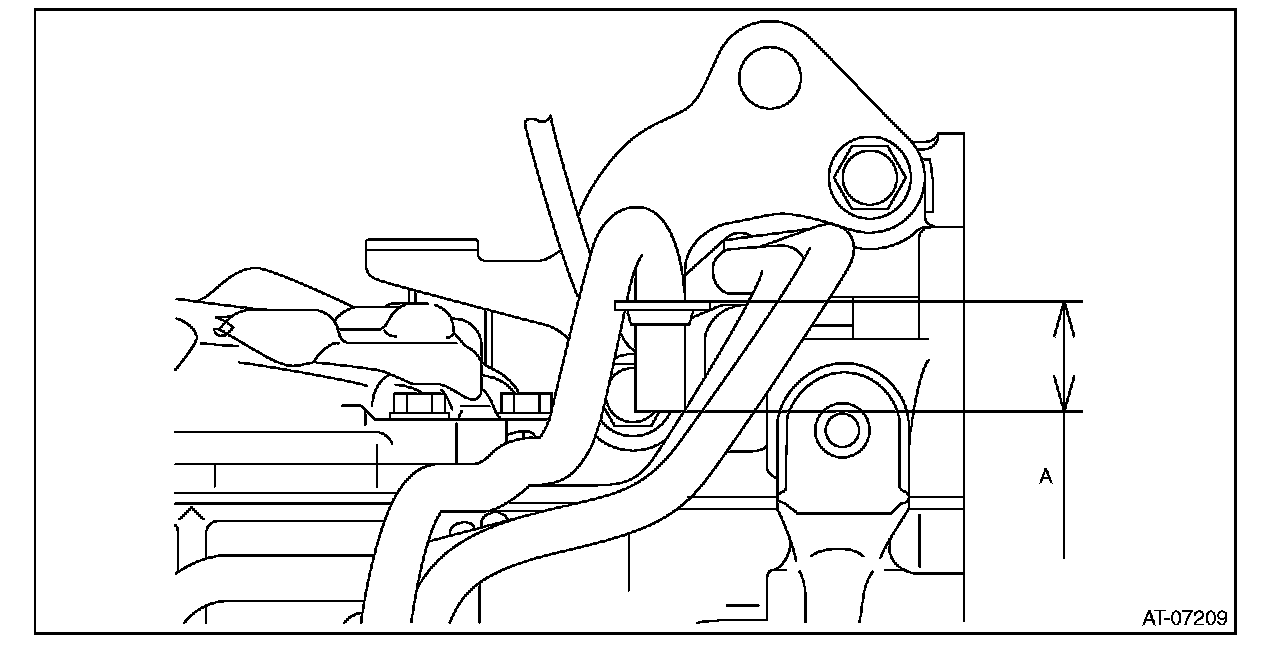

Insertion depth A:
16 - 36 mm (0.63 - 1.42 in)
TRANSMISSION CASE SIDE
Install in the reverse order of removal.
Tightening torque:
Transmission case cover:
8 Nm (0.8 kgf-m, 5.9 ft-lb)
