Valve Body: Testing and Inspection
INSPECTION ^
Check each part for damage or dust.
^

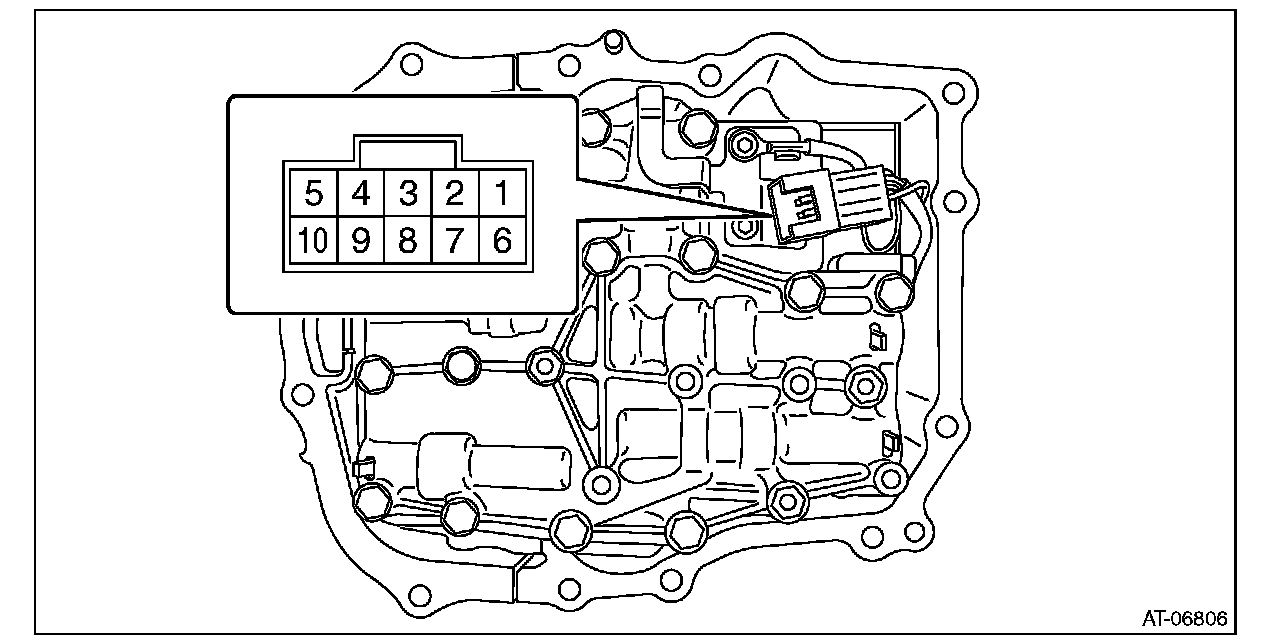

Measure the resistance of each solenoid, sensor and ground wire.
NOTE: Measurement should be performed at a temperature of 20°C (68°F).
^

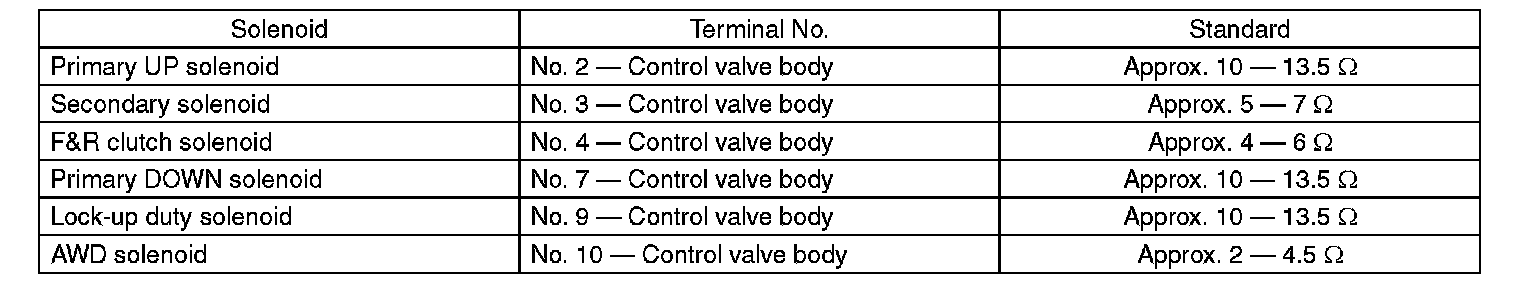

Solenoid ^

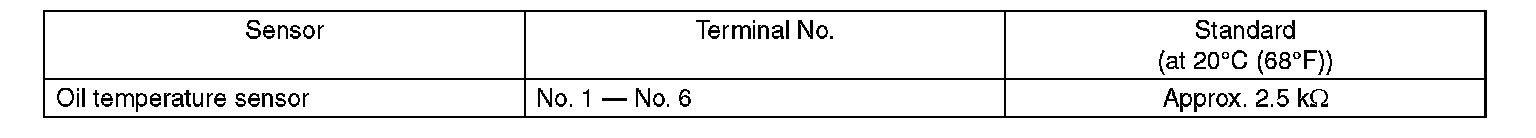

Oil temperature sensor ^

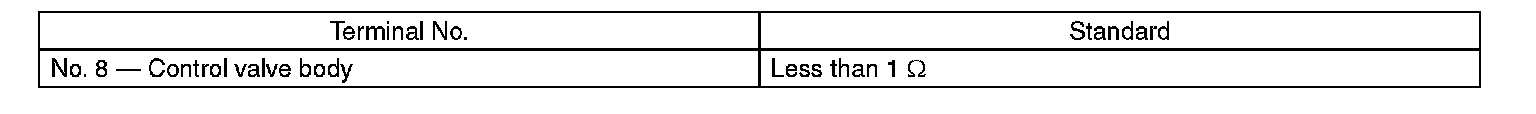

Transmission ground
