Installation

Transmission Control Module (TCM)

INSTALLATION

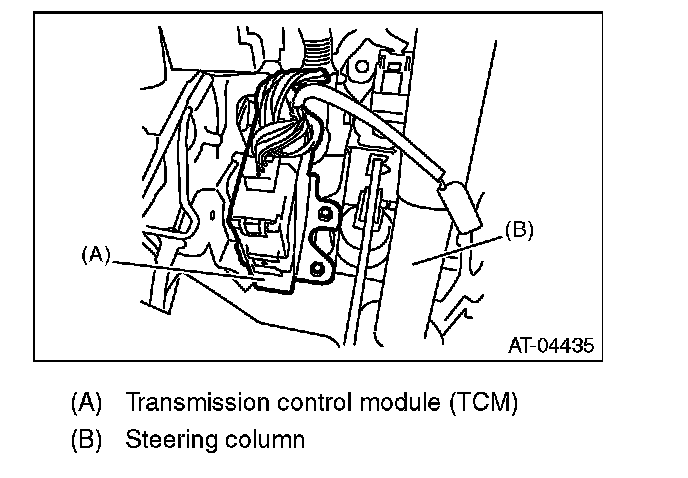

1) Install the TCM to the bracket.

CAUTION:
To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.

2) Install the TCM.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)





3) Connect the connector to TCM.
4) Install in the reverse order of removal.
5) Perform Clear Memory 2 operation. Clearing Diagnostic Trouble Codes
6) Perform the diagnosis again. Programming and Relearning
7) Perform the inspection at the end of repair work, and make sure there is no faulty as below:
^ Excessive shift shock
^ Oil leakage from the transmission body, etc.
^ Occurrence of noise caused by interference etc.
