Oscilloscope Patterns and Waveforms

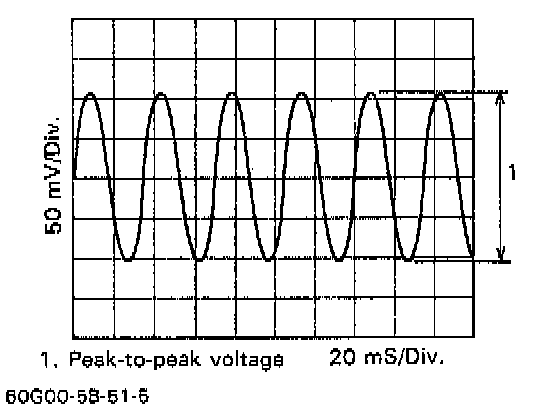

When using oscilloscope for this check, check if peak-to-peak voltage at 2/3 to one rotation per second is (29-44 Hz): 210 mV or more and waveform is complete.
