Cruise Control Servo Cable: Adjustments
1.
Disconnect battery ground cable.
2.
Remove actuator cover, loosen lock nuts.

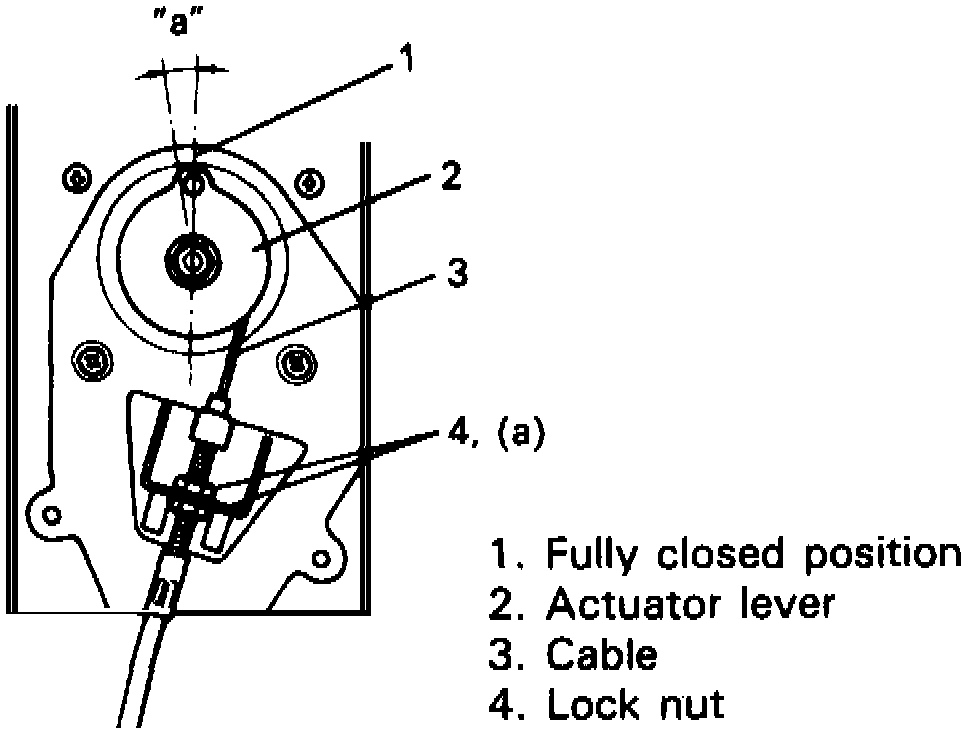

Fig. 2 Servo Cable Adjustment.:
3.
Adjust cable to obtain 0.04-0.08 of an inch play,
Fig. 6, with actuator lever fully closed.
4.
Torque locknuts to 4 ft. lbs.
