Engine Installation

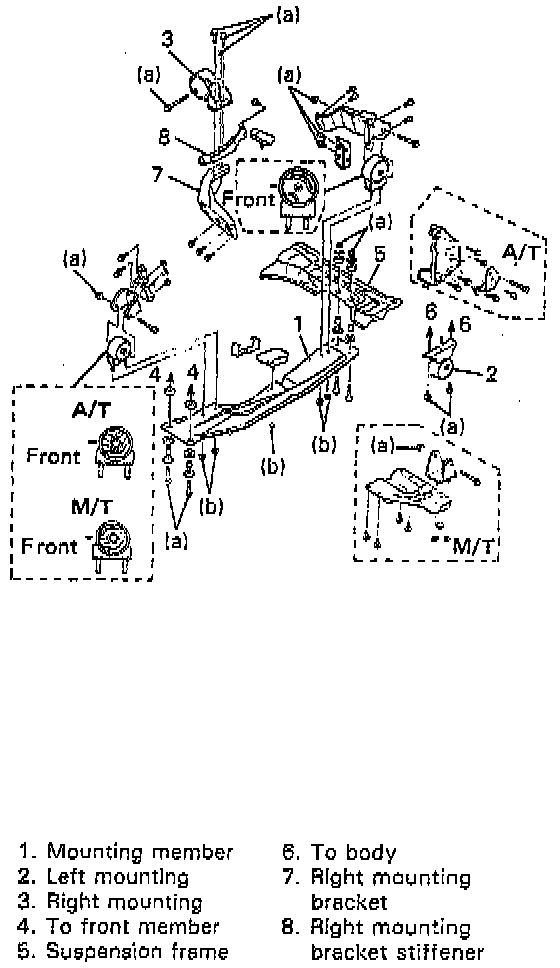

1. Lift engine with transmission into engine compartment, but do not remove lifting device.
2. Install engine right mounting to right mounting bracket and stiffener.
3. Install engine left mounting to body.
4. Install mounting member to front member and suspension frame.
5. Tighten bolts and nuts of all parts installed in above steps 2, 3 and 4 to specified torque.

Tightening Torque
(a): 55 Nm (40.0 ft. lbs.)
(b): 45 Nm (32.5 ft. lbs.)

6. Remove lifting device.
7. Reverse removal procedures for installation of remainder.
- Push in each drive shaft joint fully so that snap ring engages with differential gear or center bearing support.
Use care not to damage oil seal lip when inserting.
- Clamp electric wire securely.
8. Adjust clutch pedal free travel. (For M/T model)
Adjust gear select cable and oil pressure control cable. (For A/T model)
9. Adjust gear shift control lever. (For M/T model)
10. Refill transmission with gear oil. 'A/T fluid for A/T model).
11. Refill engine with engine oil.
12. Refill cooling system.
13. Adjust A/C compressor and/or P/S pump drive belt. (if equipped)
14. Check P/S fluid level. (if equipped)
15. Upon completion of installation, verify that there is no fuel leakage, coolant leakage, transmission oil leakage or exhaust gas leakage at each connection.
16. Adjust accelerator cable play.
