Blower Motor: Service and Repair

Blower Motor

1. Disconnect battery ground cable.
2. On models with air bag, disarm and remove air bag modules as outlined under Technician Safety Information.
3. Remove glove compartment and holder stay.
4. Remove engine control module (ECM) and instrument panel lower member.
5. Disconnect all electrical connectors from blower motor.
6. Disconnect fresh air control cable from blower motor case.

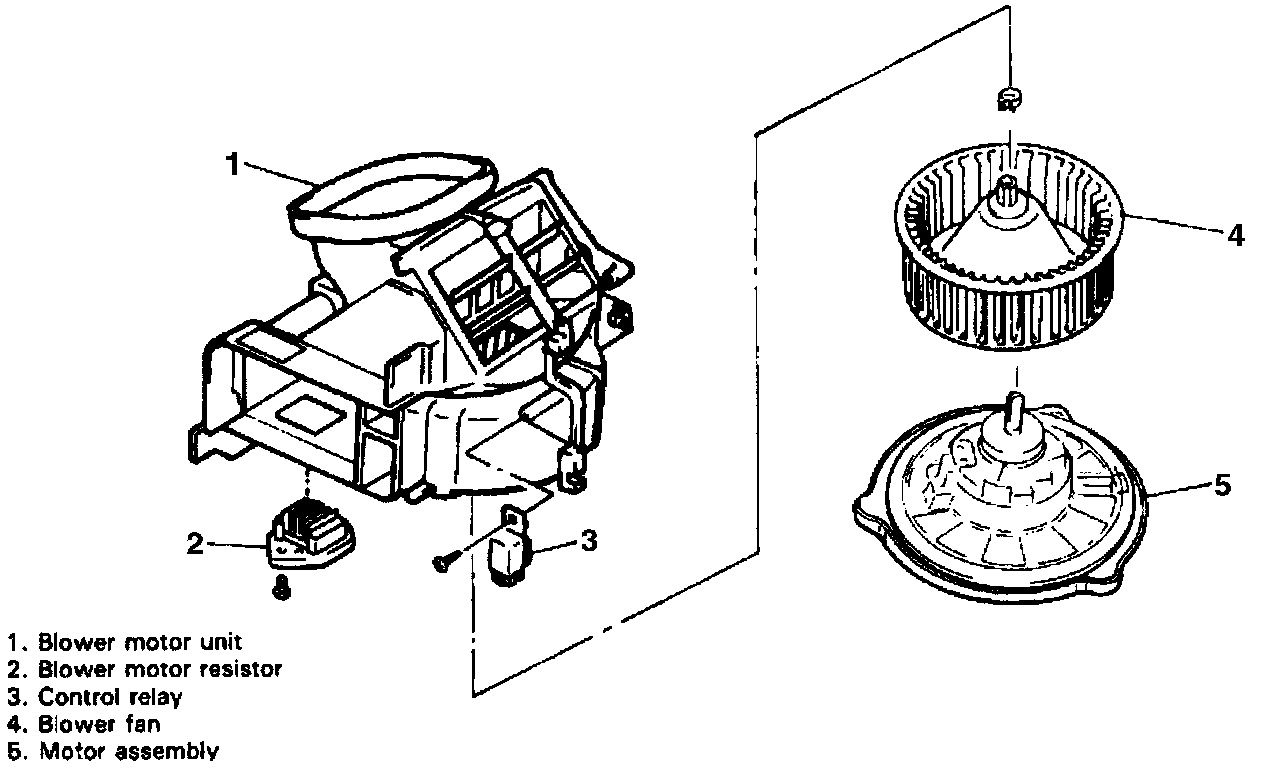

Fig. 6 Exploded View Of Blower Motor Assembly:

7. Remove blower motor attaching bolts, then the blower motor, Fig. 6.
8. Reverse procedure to install.
