Expansion Valve: Service and Repair



EXPANSION VALVE

REMOVAL
1. Remove evaporator (cooling unit). Heating and Air Conditioning

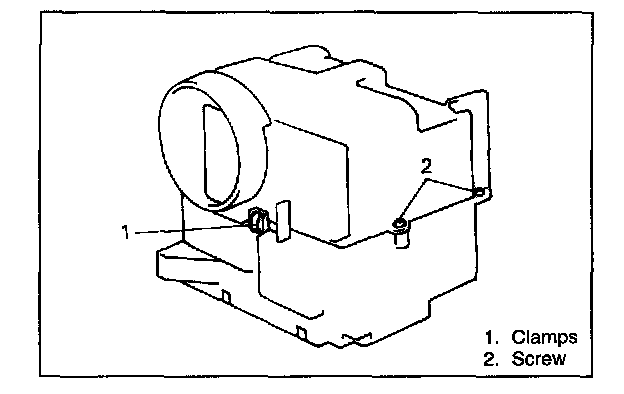

2. Detach clamp and remove screw to separate evaporator upper and lower cases from each other.

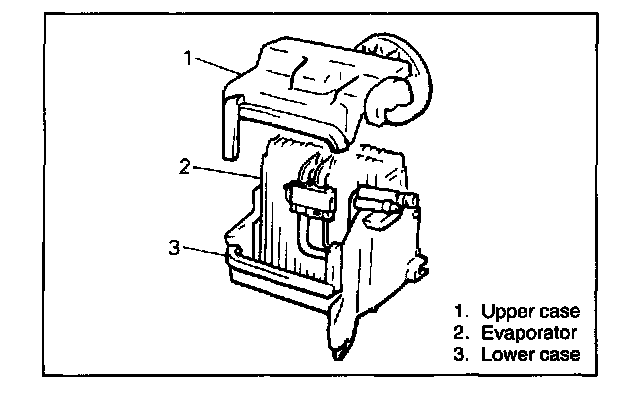

3. Take off case cover and remove evaporator out of position.
4. Remove following components from evaporator.
- Expansion valve.
- Thermistor.

INSTALLATION
1. Reverse removal sequence to install thermistor.
2. Enable air bag system.
3. Evacuate and charge system according to previously described procedure.
