Maintenance Indicator - A/T: Testing and Inspection

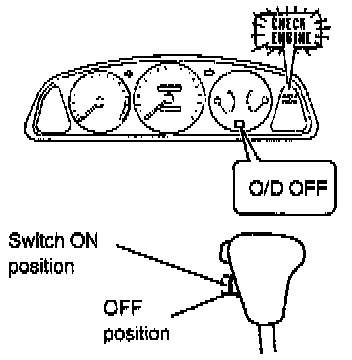

"O/D OFF" LAMP CHECK -
Check that O/D cut switch button is at OFF position (pushed).
-
Turn ON ignition switch.
-
Check that "O/D OFF" lamp lights for about 2 Sec. and then goes OFF.
If anything faulty is found, advance to Diagnostic flow chart A-1 , A-2 or A-3.
