Timing Belt: Testing and Inspection
CAUTION: ^
Do not bend or twist
timing belt.
^
Do not allow
timing belt to come into contact with oil, water, etc.
INSPECTION 1.
Remove
timing belt outside cover.
2.

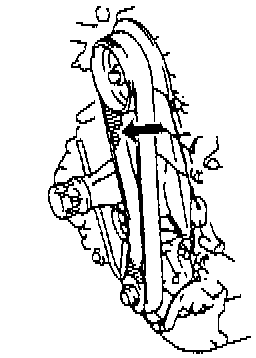

Inspect belt for wear or crack. If any wear or crack is found on belt, replace it.
3.
Install
timing belt outside cover, pulley etc.
