Symptom Diagnostic Procedures
Perform troubleshooting referring to above table when ECM has detected no DTC and no abnormality has been found in visual inspection and engine basic inspection previously.

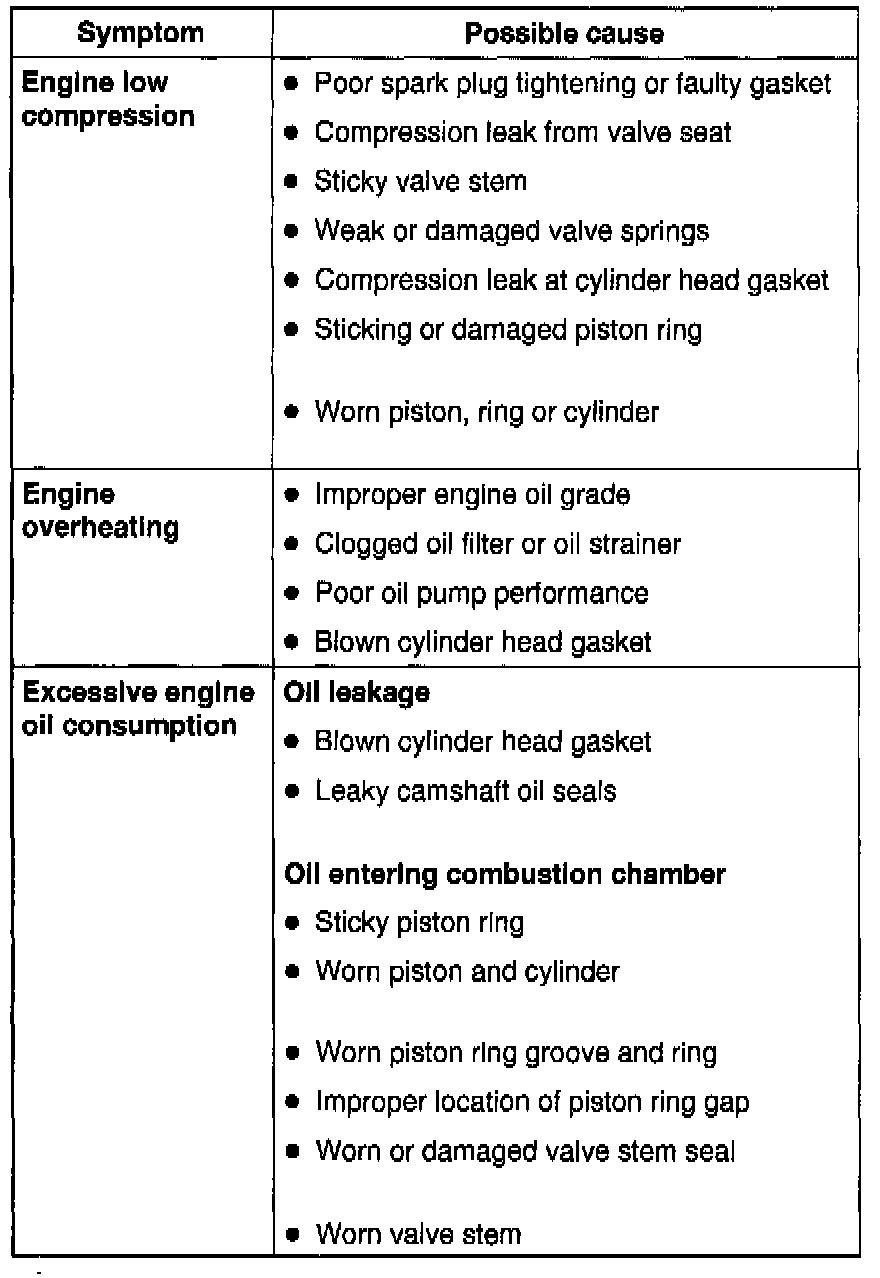

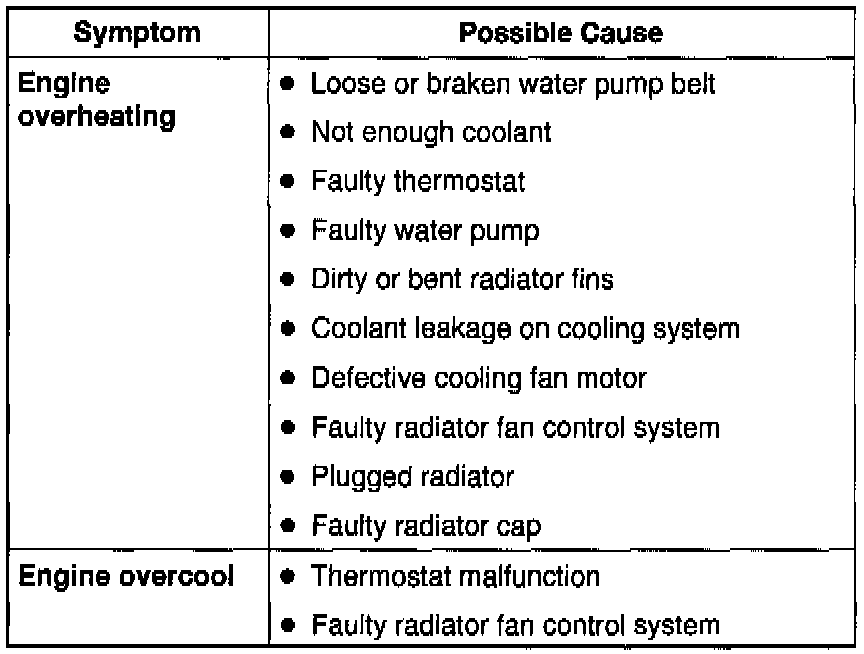

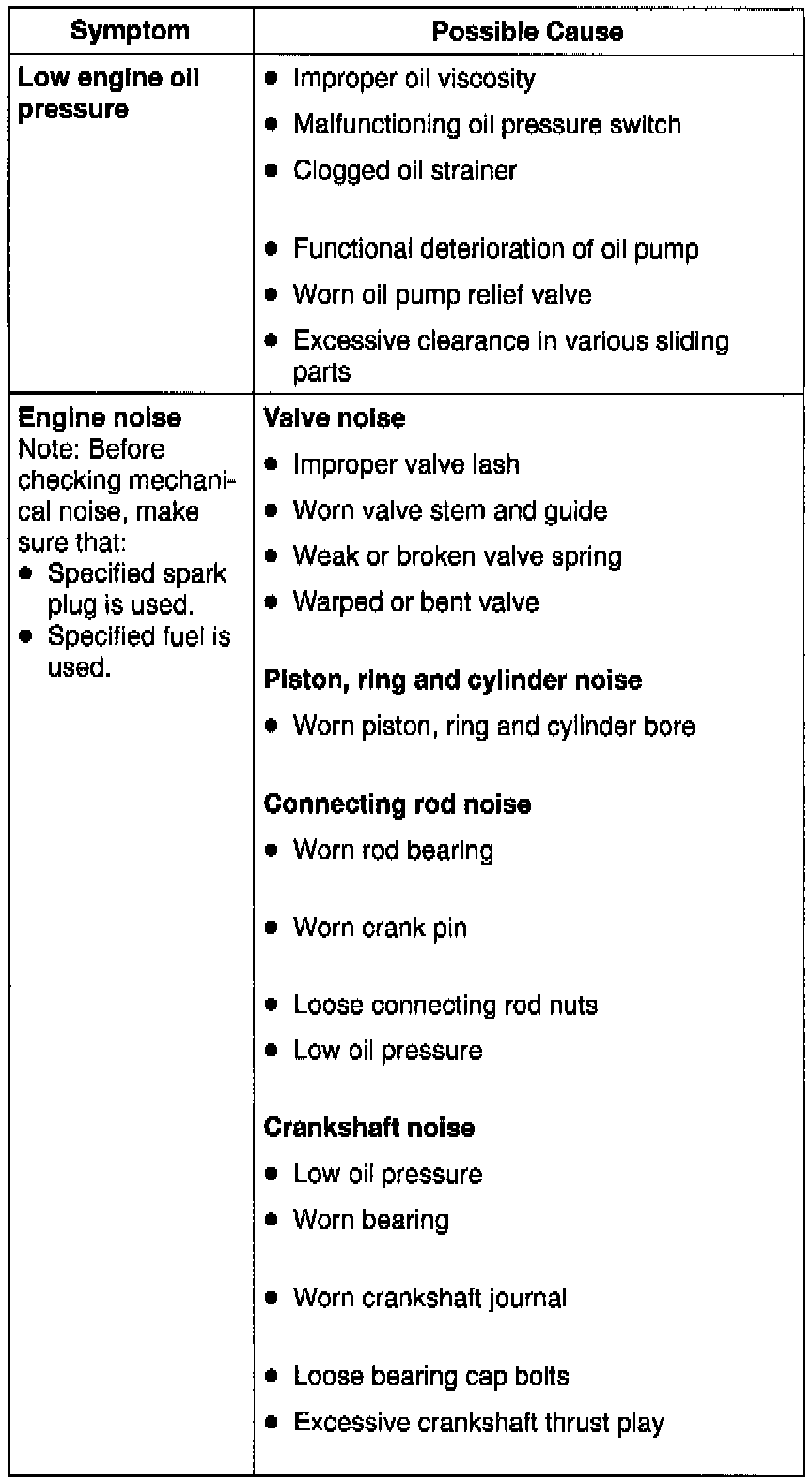

ENGINE MECHANICAL DIAGNOSIS TABLEENGINE COOLING SYSTEM DIAGNOSIS TABLE
