With Automatic Transmission

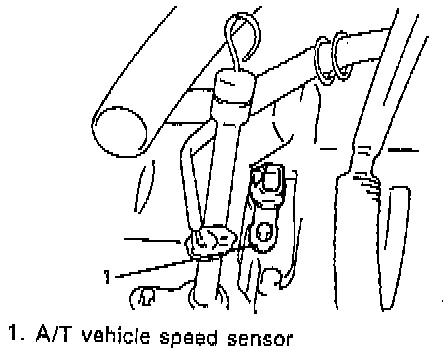

REMOVAL 1.
Disconnect negative cable at battery.
2.
Disconnect A/T
VSS coupler.
3.
Remove A/T
VSS by removing its bolt.

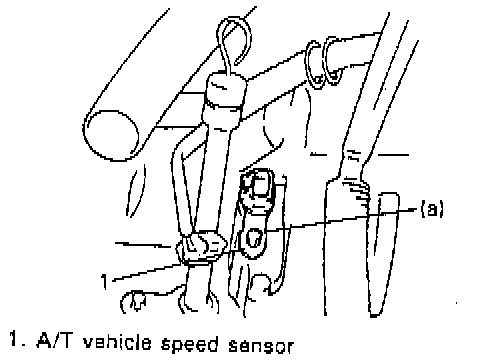

INSTALLATION 1.
Apply A/T fluid to A/T
VSS O-ring.
2.
Install A/T
VSS to A/T case and tighten bolt to specified torque.
Tightening Torque (a):
5.5 Nm (4.0 ft. lbs.) 3.
Connect A/T
VSS coupler to A/T VSS.
4.
Connect negative cable to battery.
