With Manual Transmission

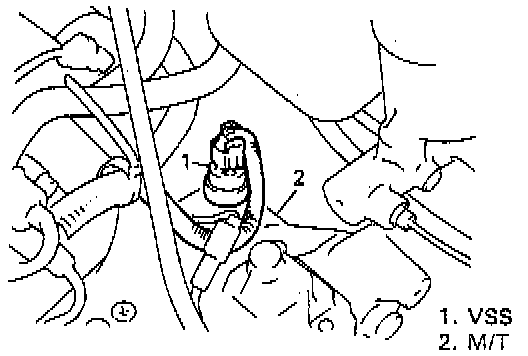

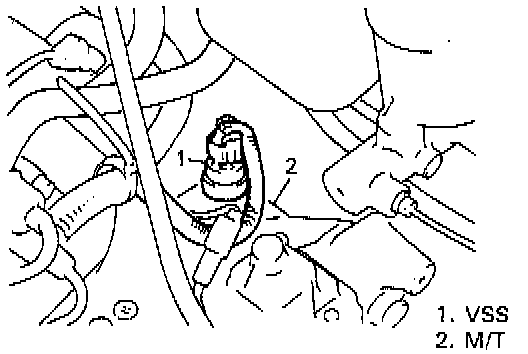

REMOVAL 1.
Disconnect negative cable at battery.
2.
Disconnect
VSS coupler.
3.
Remove
VSS.

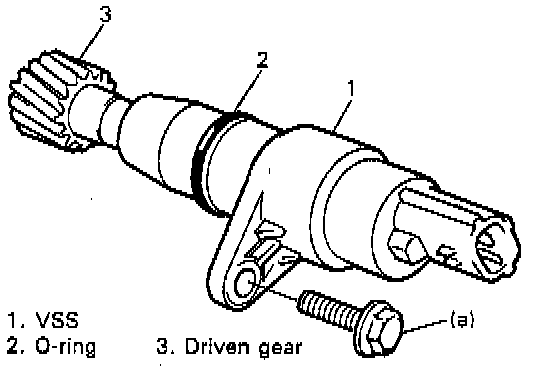

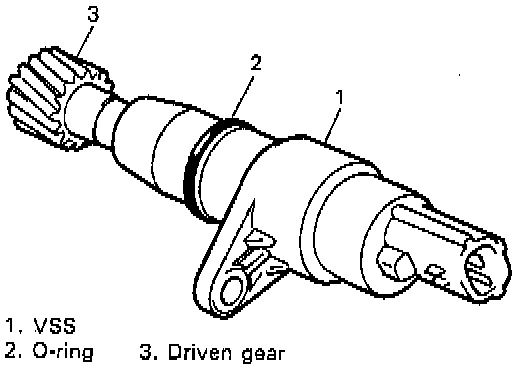

INSTALLATION 1.
Check O-ring and
VSS surface for their flawlessness, apply oil to O-ring and driven gear and then install VSS to transmission.
Tightening Torque (a):
5.5 Nm (4.0 ft. lbs.) 2.
Connect
VSS coupler.
3.
Connect negative cable at battery.
