Ignition Coil: Testing and Inspection
1.
Pull out high-tension cord by gripping its cap.
2.
Disconnect
ignition coil coupler.
3.

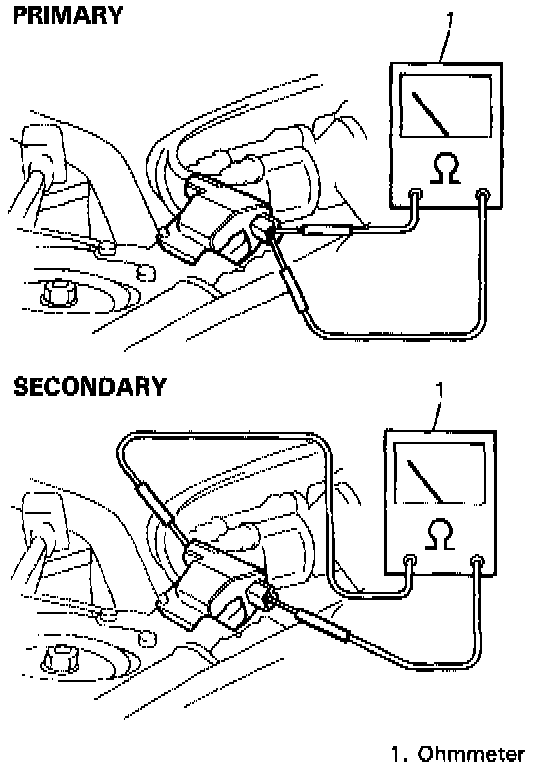

Measure primary and secondary coil resistances.
Ignition coil resistance (at 20°C, 68°F) Primary :0.86 - 1.06 Ohms Secondary: 11.2 - 15.2 k Ohms 4.
If resistance is out of specification, replace coil with new one.
