Inspection
1.

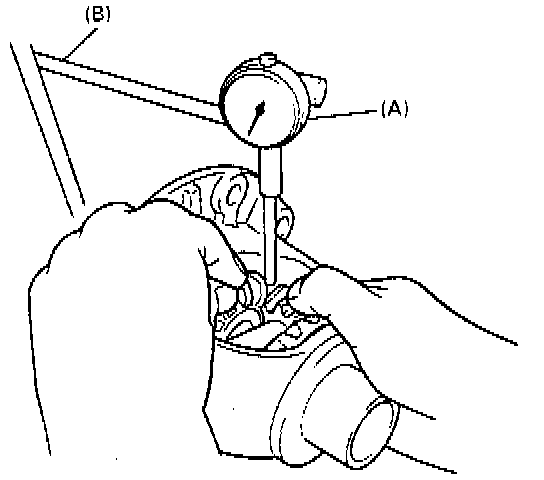

Hold
differential assembly with soft jawed vice and set Special Tools (A): 09900-20606 and (B): 09900-20701, or equivalent as shown.
2.
Measure differential gear thrust play.
Differential gear thrust play:
0.06 - 0.22 mm (0.0024 - 0.0087 inch) 3.
If thrust play is out of specification, replace differential case.
