Operation Check

1. Install forward clutch assembly and overdrive/coast clutch assembly to transmission rear cover.
2. Install planetary ring gear assembly to forward clutch and install No.0 (F0) one-way clutch to planetary ring gear facing toward front side.

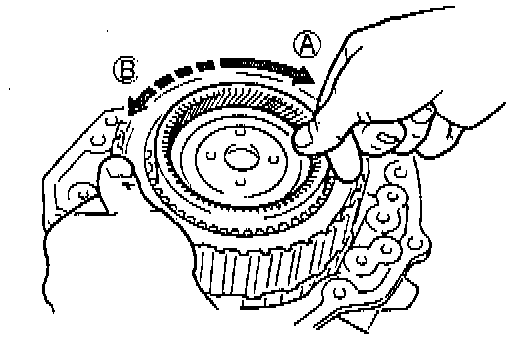

3. Check to make sure that No.0 (F0) one-way clutch turns freely when turned clockwise (A) and locks when turned counterclockwise (B).





4. Remove planetary ring gear assembly from forward clutch assembly.
5. Turn over planetary ring gear assembly.

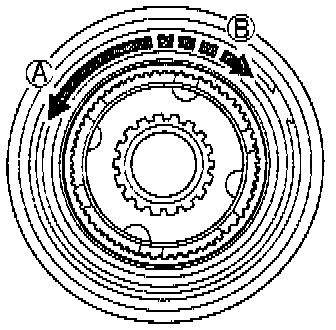

6. Check to make sure that No.1 (F1) one-way clutch turns freely when turned counterclockwise (A) and locks when turned clockwise (B).
