Installation

For installation, reverse removal procedure. Use following specified torques and note points listed below.

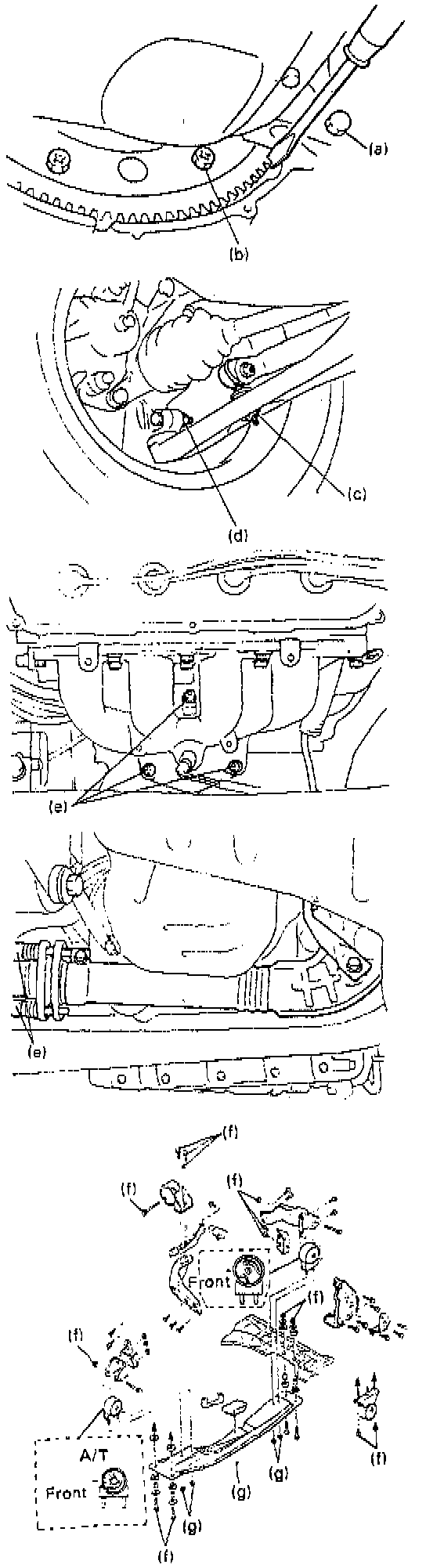

Tightening Torque
(a): 90 Nm (65.0 ft. lbs.)
(b): 19 Nm (14.0 ft. lbs.)
(c): 28 Nm (20.5 ft. lbs.)
(d): 60 Nm (43.5 ft. lbs.)
(e): 50 Nm (36.5 ft. lbs.)
(f): 55 Nm (40.0 ft. lbs.)
(g): 45 Nm (32.5 ft. lbs.)

- Push in each drive shaft joint fully so that snap ring engages with differential gear.

CAUTION:
^ Care should be taken not to scratch oil seal lip with drive shaft while inserting drive shaft, joint into transmission.
^ Do not hit drive shaft joint with hammer when installing it.

- Set each clamp for wiring securely.
- Adjust select cable.
- Refill fluid and adjust its level at normal operating temperature.
- Check to make sure that engine and transmission function properly.
- Make sure that these is no evidence of fluid leakage.
