Front Door Window Regulator: Service and Repair
Removal 1.
Remove door glass referring to "Front Door Glass Removal and Installation:".
2.

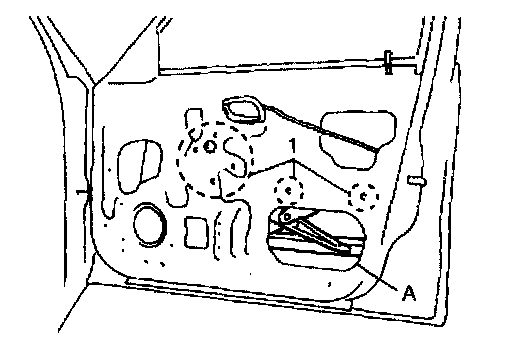

Remove window regulator attaching screws (1) (six pcs.). Then, take out regulator through hole (A).
InstallationReverse removal sequence to install door window regulator noting following the point.
-

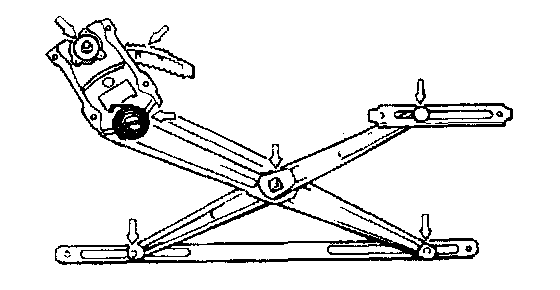

Apply multi-purpose grease to sliding parts.
