Rear Door Window Regulator: Service and Repair

Removal
1. Remove door glass referring to "Rear Door Glass Removal and Installation:".

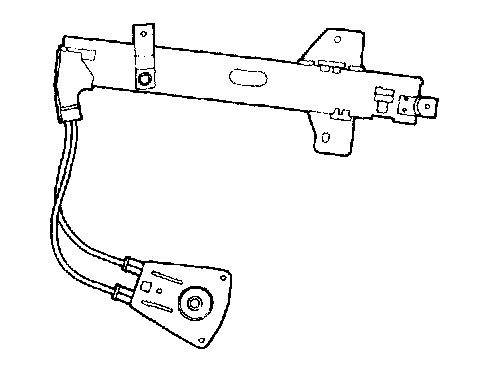

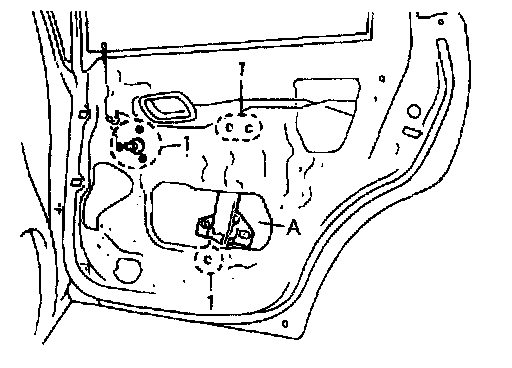

2. Remove door window regulator attaching screws (1) (six pcs.). Then, take out regulator through hole (A).

Installation
Reverse removal sequence to install door window regulator noting the following points.




1. Apply multi-purpose grease to sliding parts.

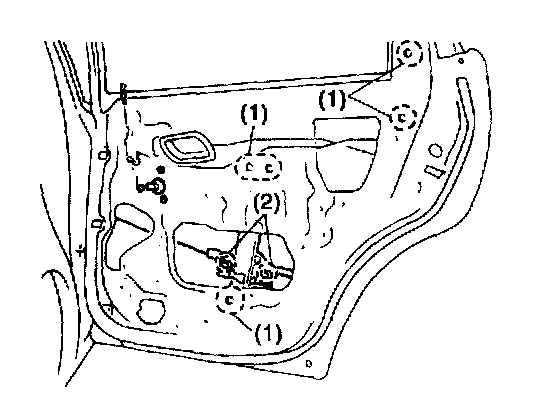

2. Adjust door window regulator according to the following procedure.
a. Loosen seven screws as shown.
b. Raise door glass fully with regulator handle.
c. Tighten five screws (1).
d. Lower door glass.
e. Tighten two screws (2).
