Fuel Level Signal: Description and Operation

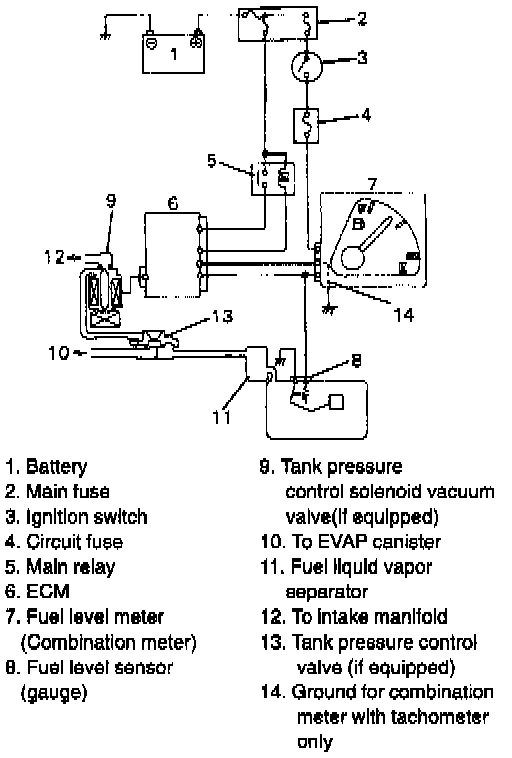

This signal is sent from the
fuel level sensor (gauge) installed in the
fuel tank. ECM uses this signal as one of the monitoring conditions for detecting diagnostic trouble code (DTC). For vehicle with
tank pressure control solenoid vacuum valve, ECM also uses this signal to control tank pressure control solenoid vacuum valve.
