Vehicle Speed Sensor: Service and Repair

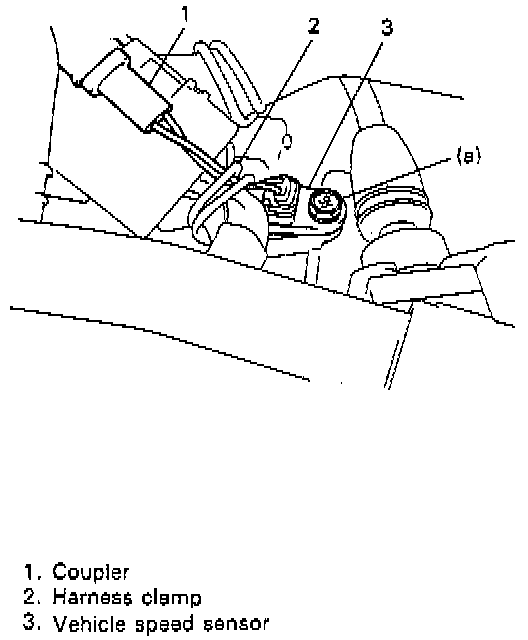

VEHICLE SPEED SENSOR 1.
Undo wiring harness clamp.
2.
Disconnect
vehicle speed sensor coupler.
3.
Remove
vehicle speed sensor bolt.
4.
Pull out
vehicle speed sensor by gripping sensor body.
5.
For installing, reverse removal procedure.
NOTE: Check to be sure that O-ring is in good condition.
Tightening Torque (a):
7 - 9 Nm (66 - 78 inch lbs.).
