Basic Check

���!:

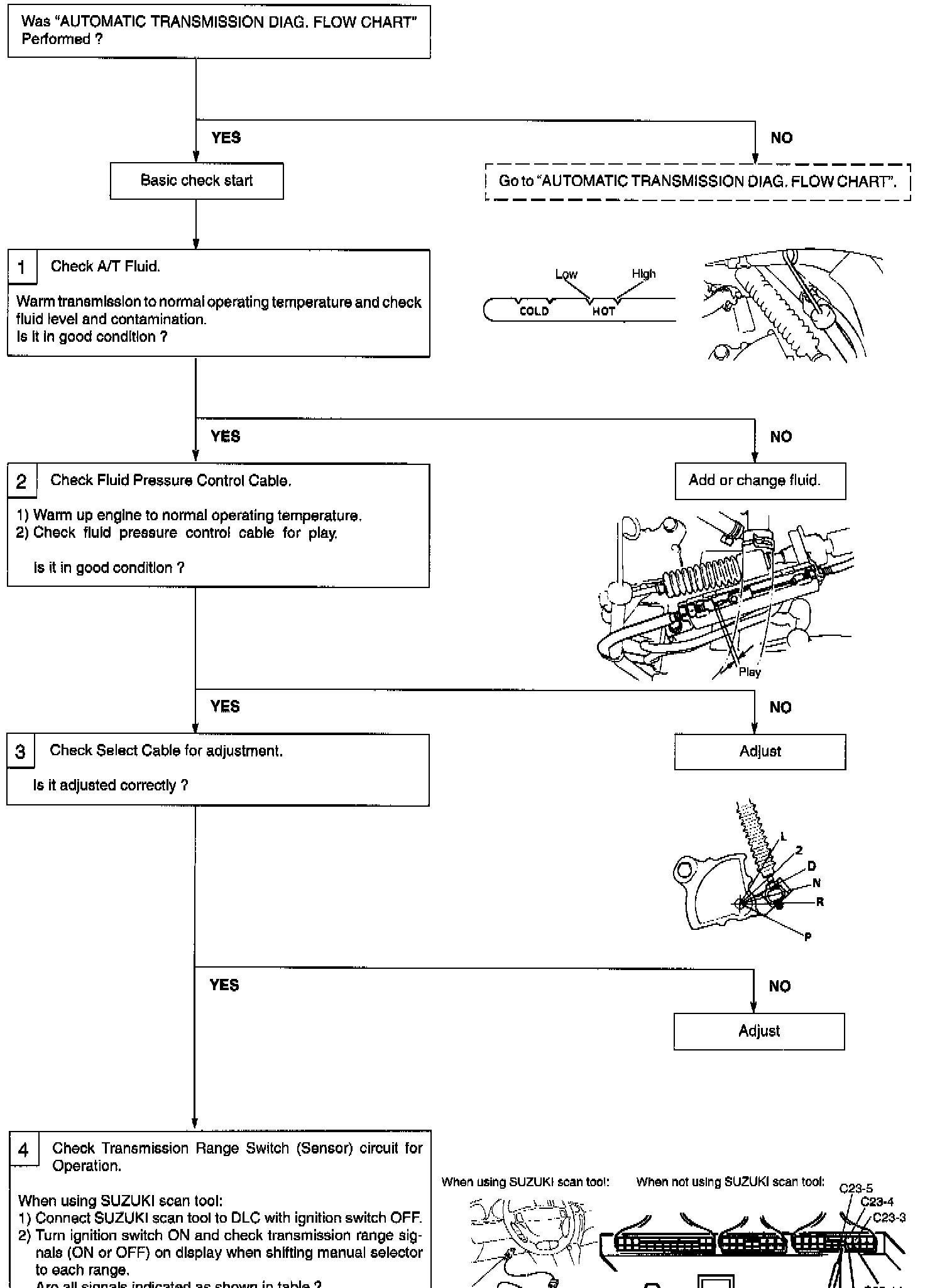

This check is very important for troubleshooting when PCM (ECM) has detected no DTC and no abnormality has been found in visual inspection. Follow the flow chart carefully.
