P Codes - Powertrain Control System

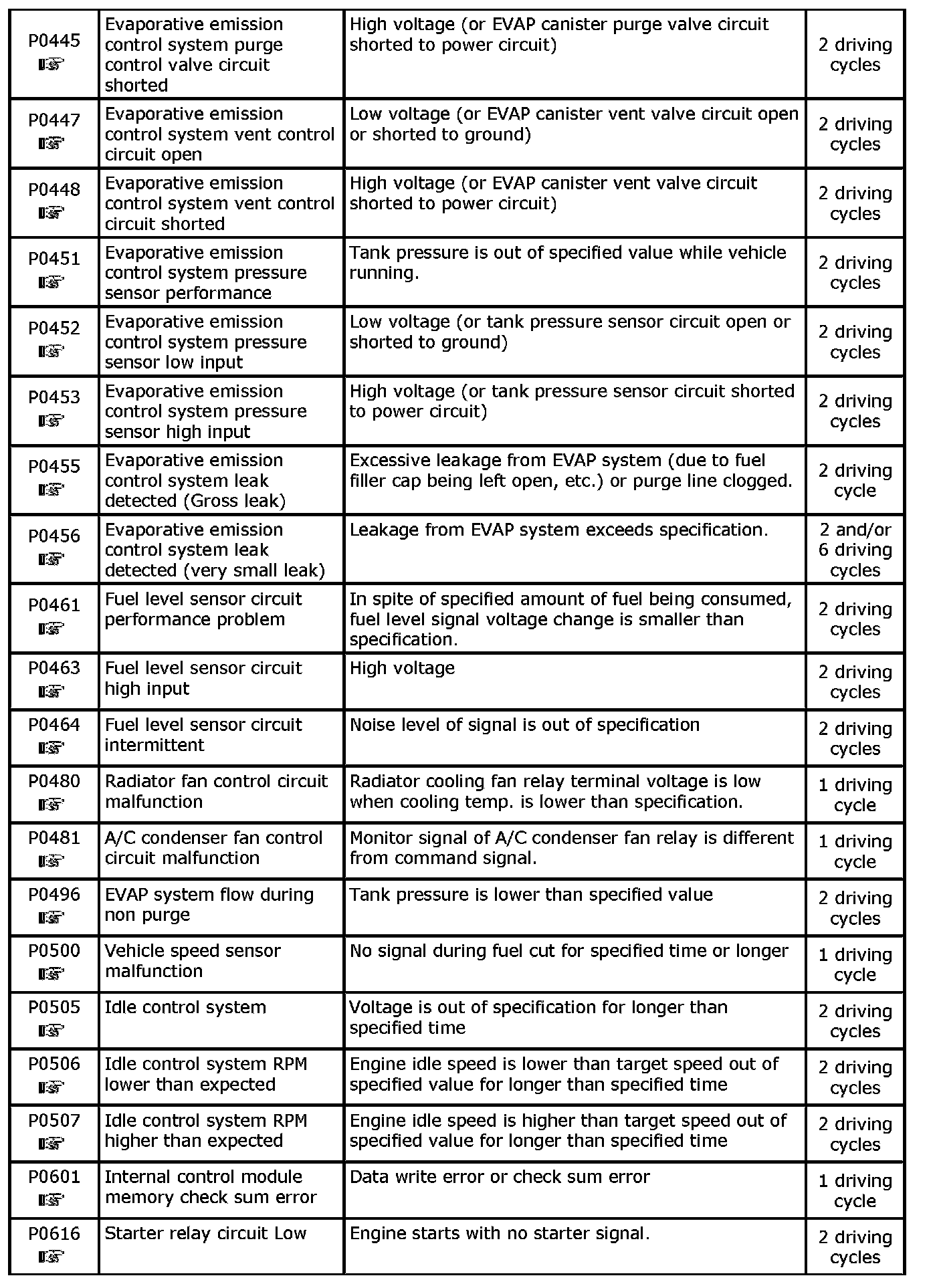

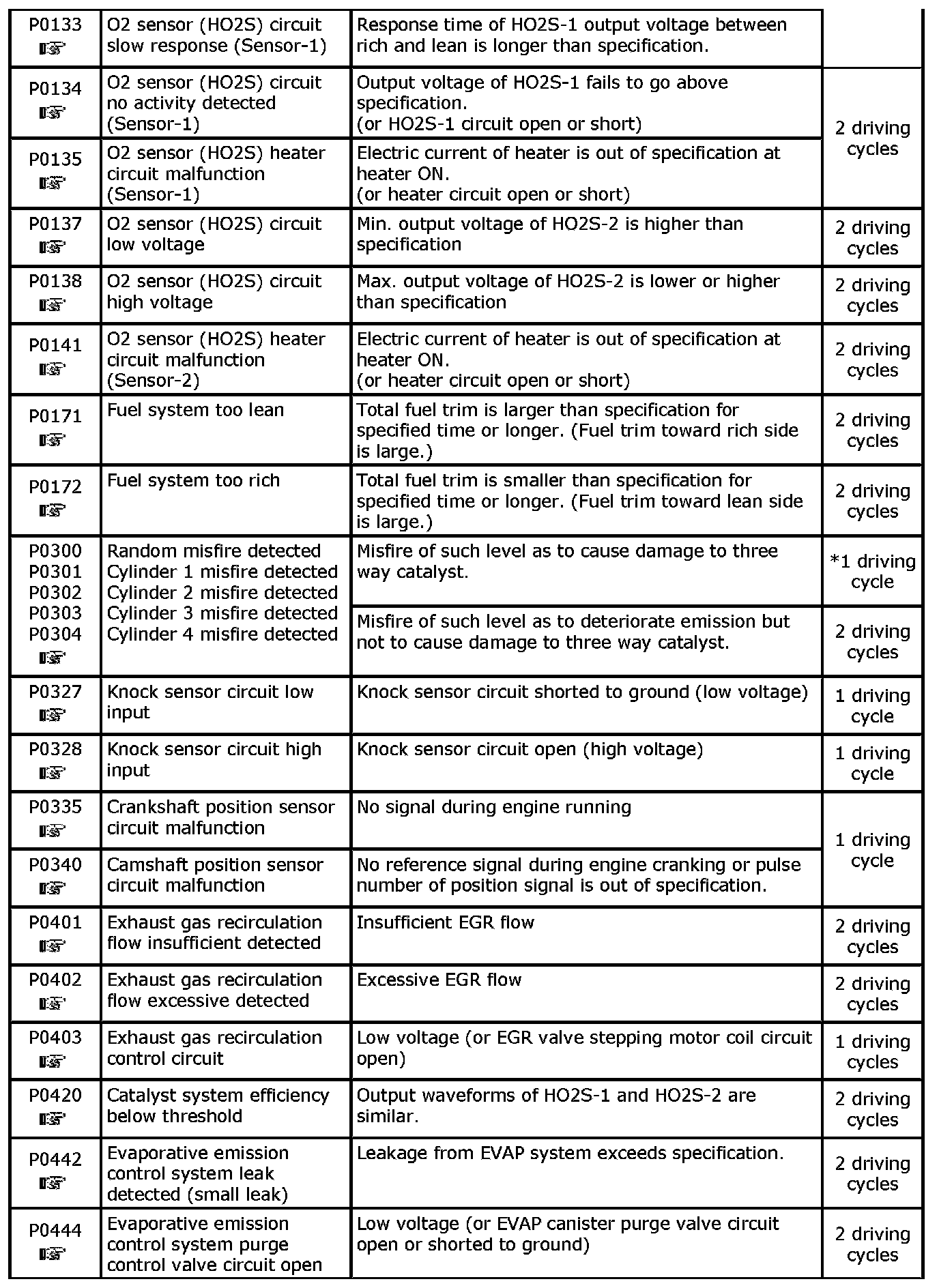

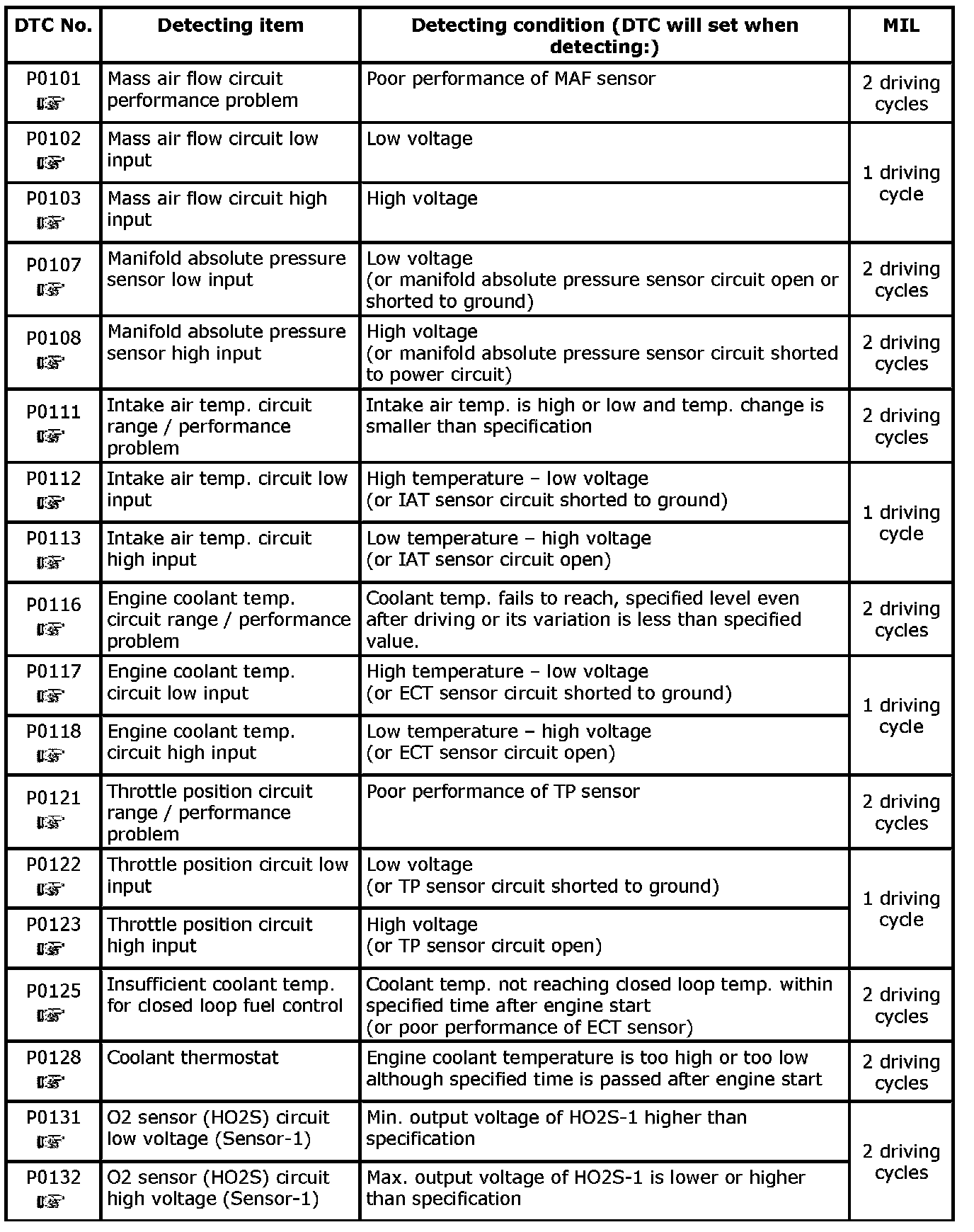

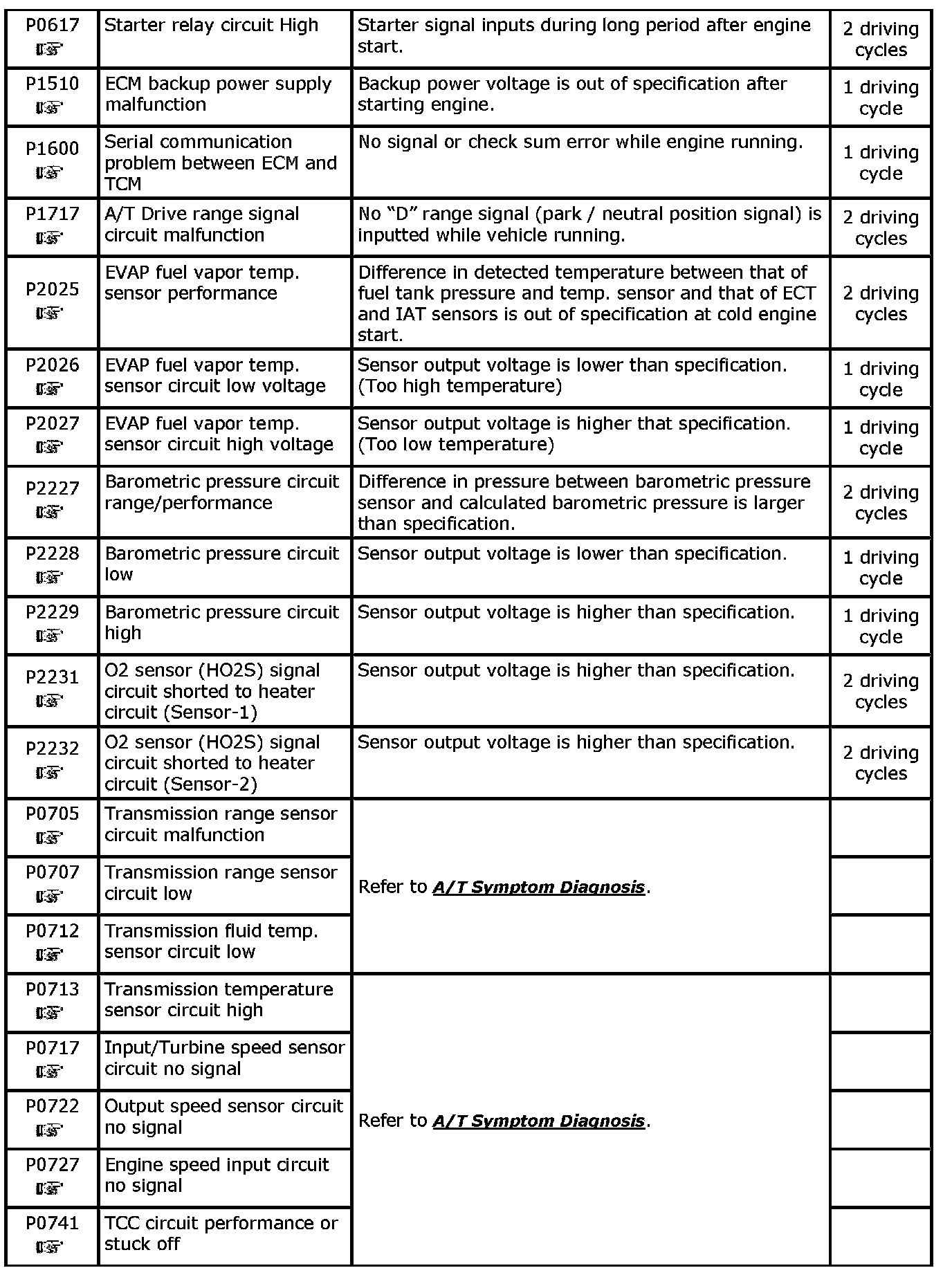

DTC Table

NOTE:
- 1 driving cycle: MIL lights up when DTC is detected while 1 driving cycle.
- 2 driving cycles: MIL lights up when the same DTC is detected also in the next driving cycle after DTC is detected and stored temporarily in the first driving cycle.
- *1 driving cycle: MIL blinks or lights up. Refer to DTC P0300 / P0301 / P0302 / P0303 / P0304: Random / Cylinder 1 / Cylinder 2 / Cylinder 3 / Cylinder 4 Misfire Detected for details.
