Symptom Related Diagnostic Procedures

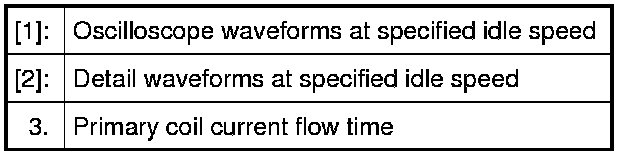

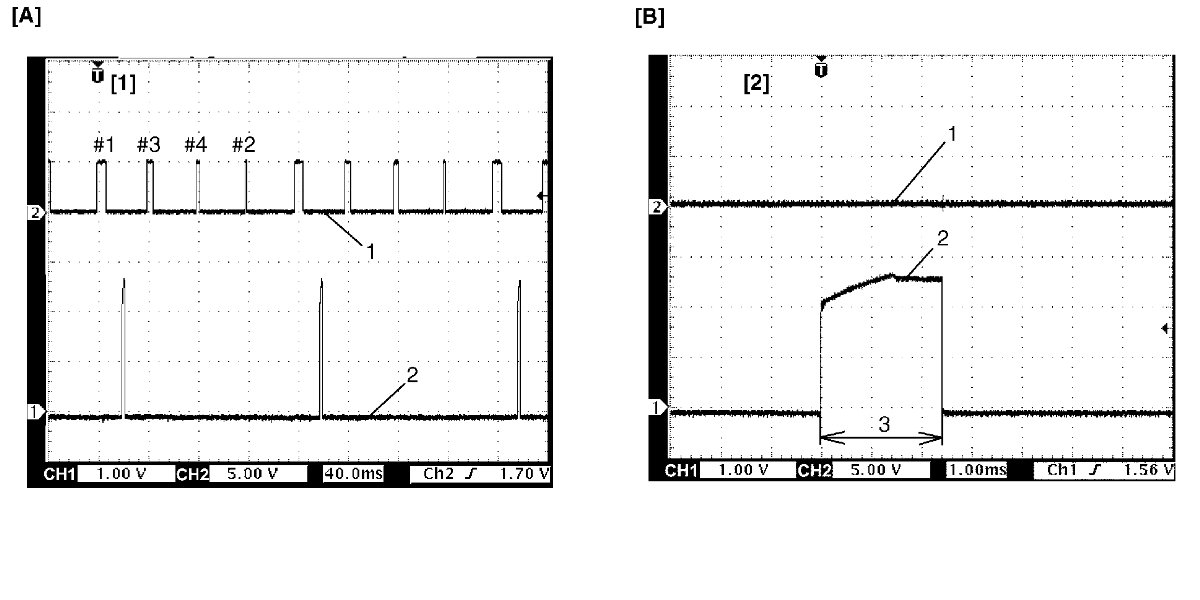

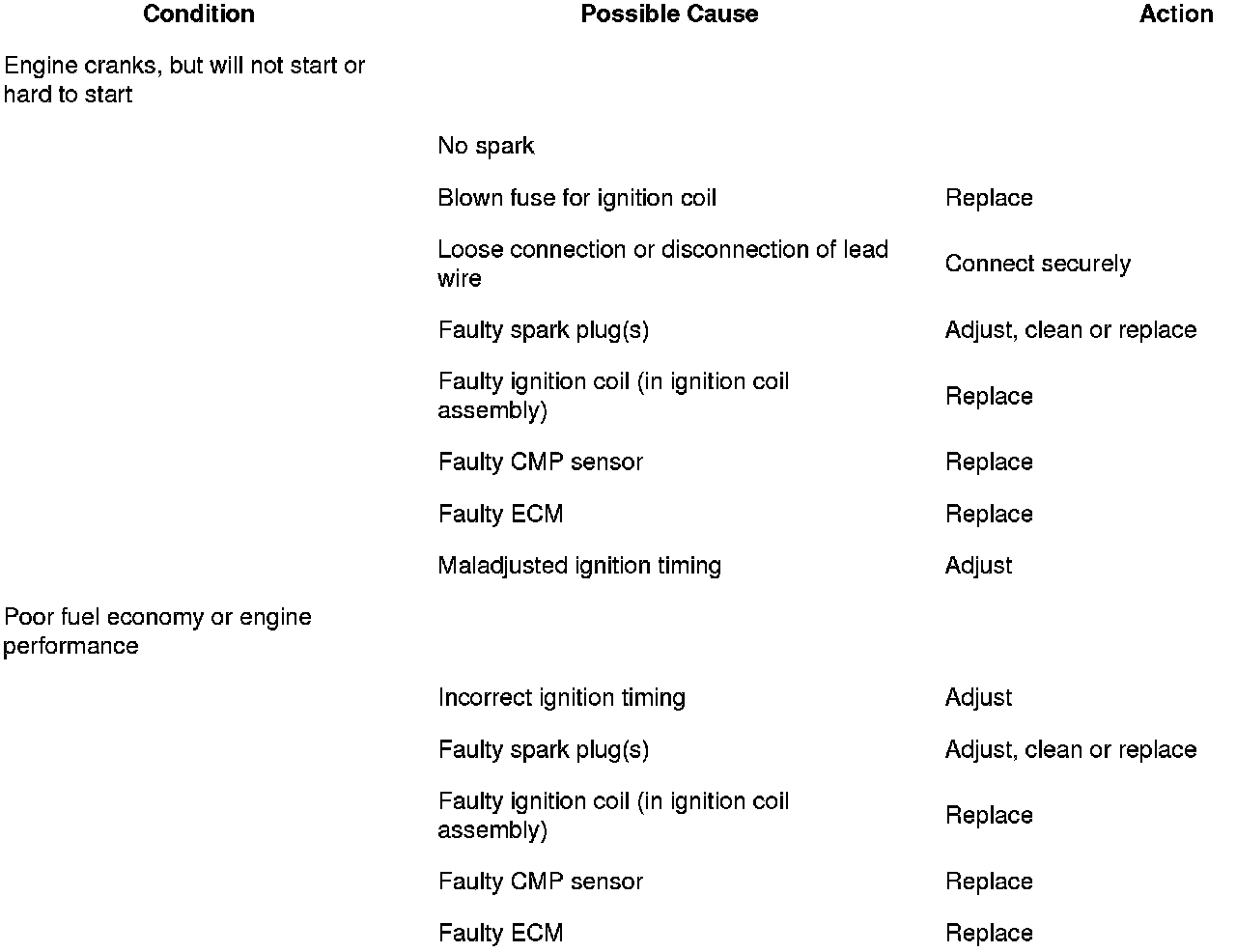

Ignition System Symptom DiagnosisReferenceOscilloscope waveforms of CMP sensor (1) and No.1 ignition trigger signal (2) are as shown in figure when connecting oscilloscope between terminals C46-10 of ECM connectors connected to ECM and ground, and between terminal C45-16 and ground.

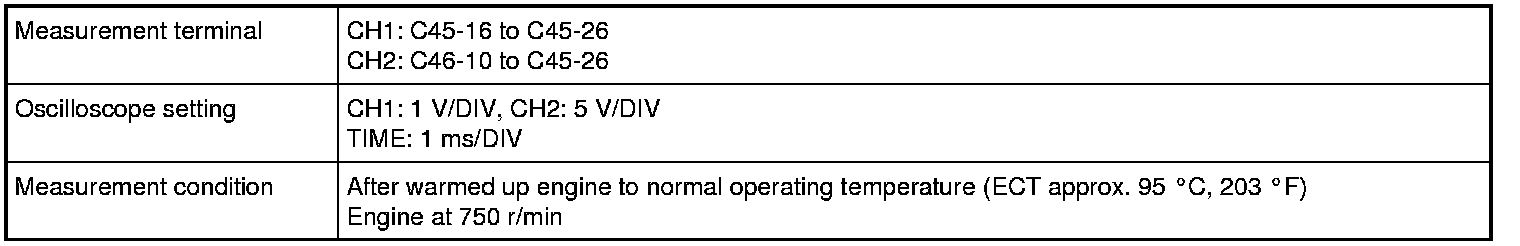

Measurement condition for waveform [A]Measurement condition for waveform [B]
