Idle Up Control Valve: Service and Repair
Idle Air Control (IAC) Valve Removal and Installation Idle Air Control (IAC) Valve Operation Check
Removal 1)
Disconnect battery negative cable at battery.
2)
Disconnect IAC valve coupler.
3)

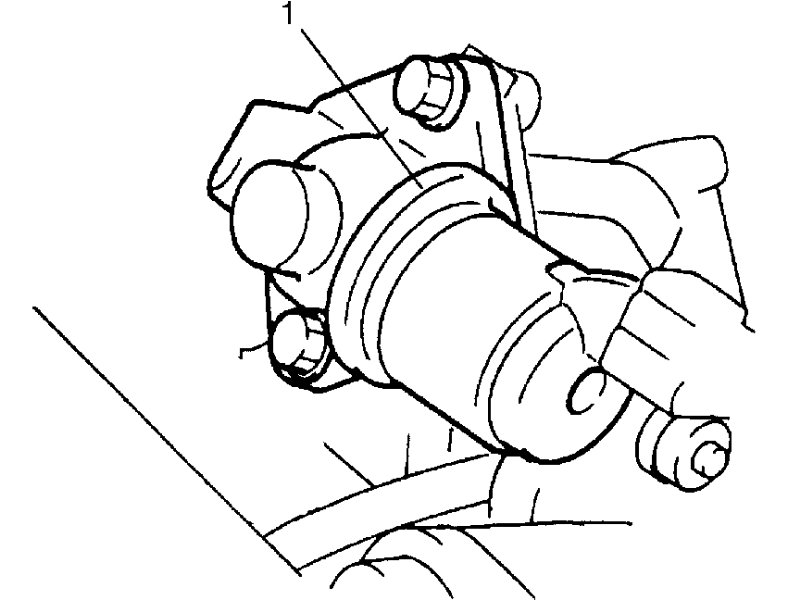

Remove lAC valve (1) from intake manifold.
Installation Idle Air Control (IAC) Valve Inspection

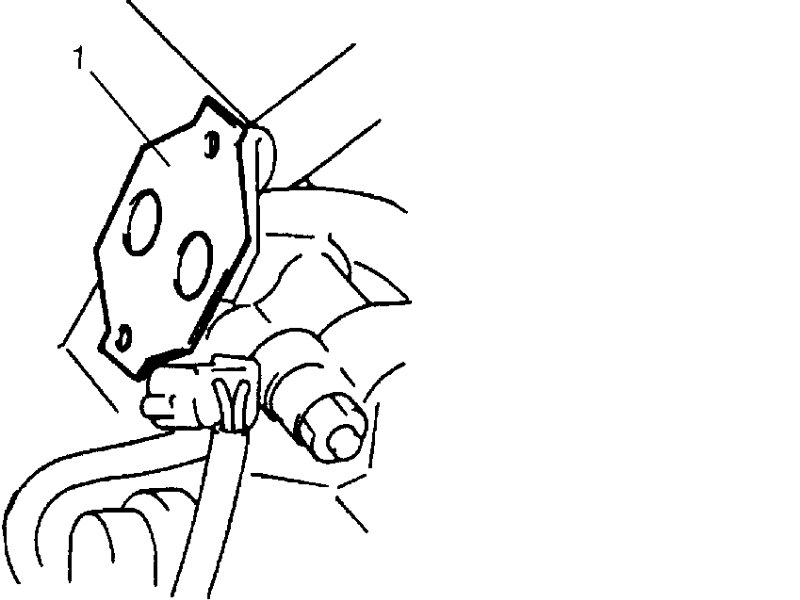

For installation, reverse removal procedure and use new gasket (1).
