Cruise Control Servo Cable: Service and Repair

Cruise Cable Removal and Installation






Removal
1. Disconnect cruise cable from cruise control arm and accelerator pedal bracket.
2. Remove actuator cap and disconnect cruise cable from actuator assembly.
3. Release cable from all clamps.
4. Remove cable from vehicle.

Installation

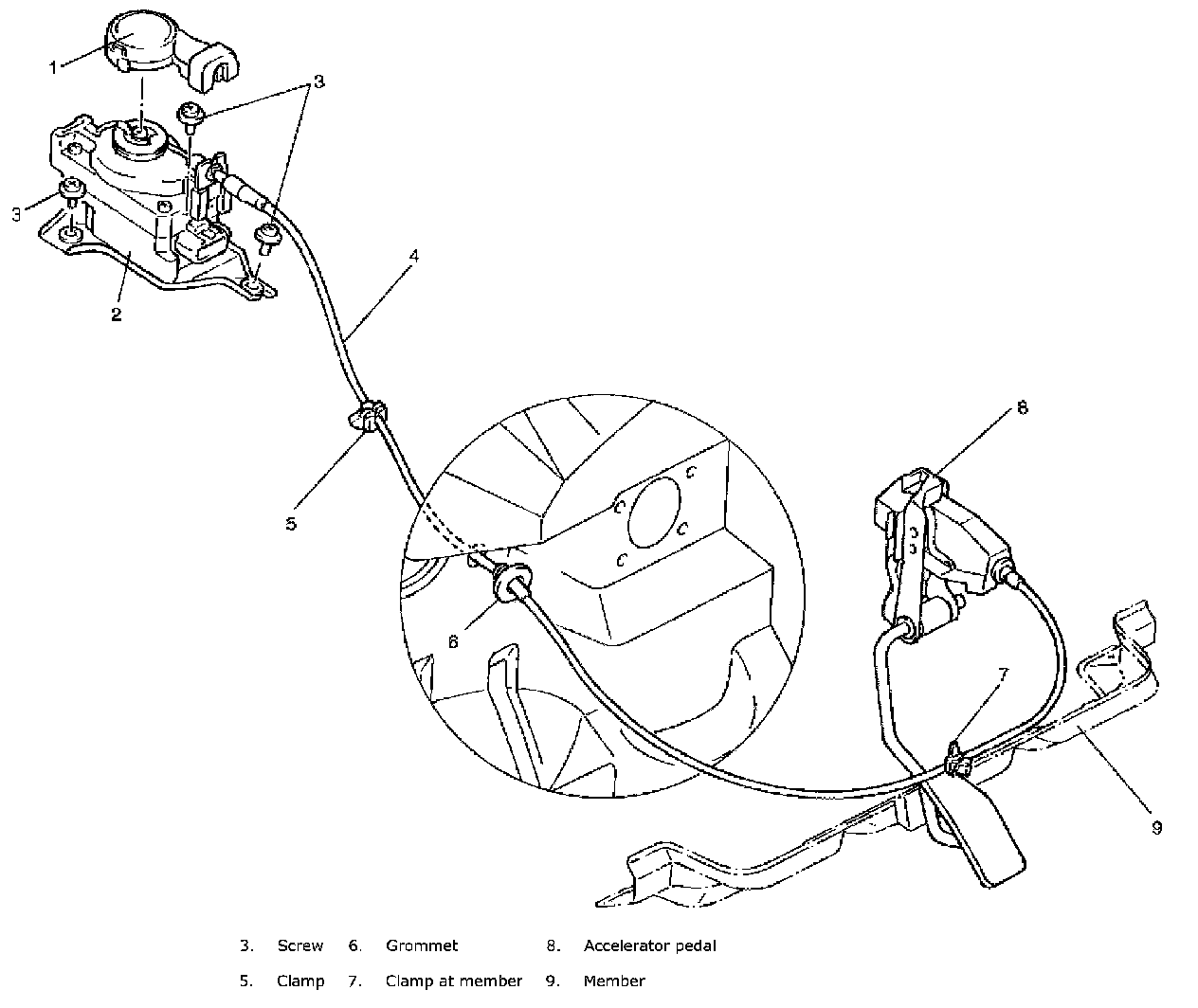

Install cruise cable (4) by reversing removal procedure. Refer to the following figure for proper clamp location and cable routing.
Adjust cable play to specification referring to Cruise Cable Play Inspection and Adjustment.
