Cruise Control Switch: Service and Repair

Cruise ON/OFF, Set/Coast, Res/Acc and Cancel Switches Removal and Installation

Removal

1. Disconnect negative (-) cable at battery.
2. Remove steering wheel referring to Steering Wheel Removal and Installation.

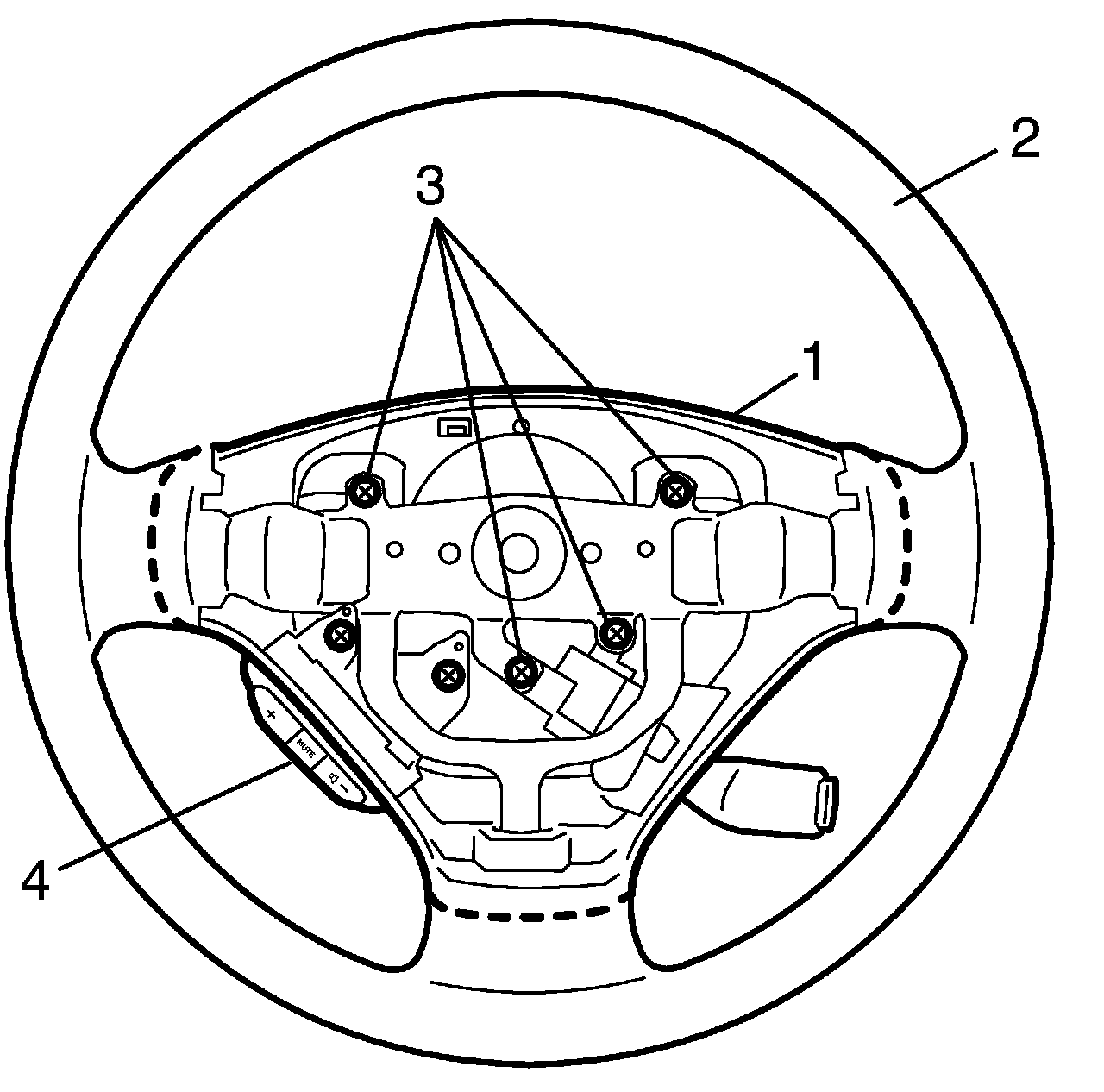

3. Remove audio control switch (if equipped) (4) from steering wheel (2).




4. Remove steering wheel lower cover (1) from steering wheel (2) removing 4 screws (3).

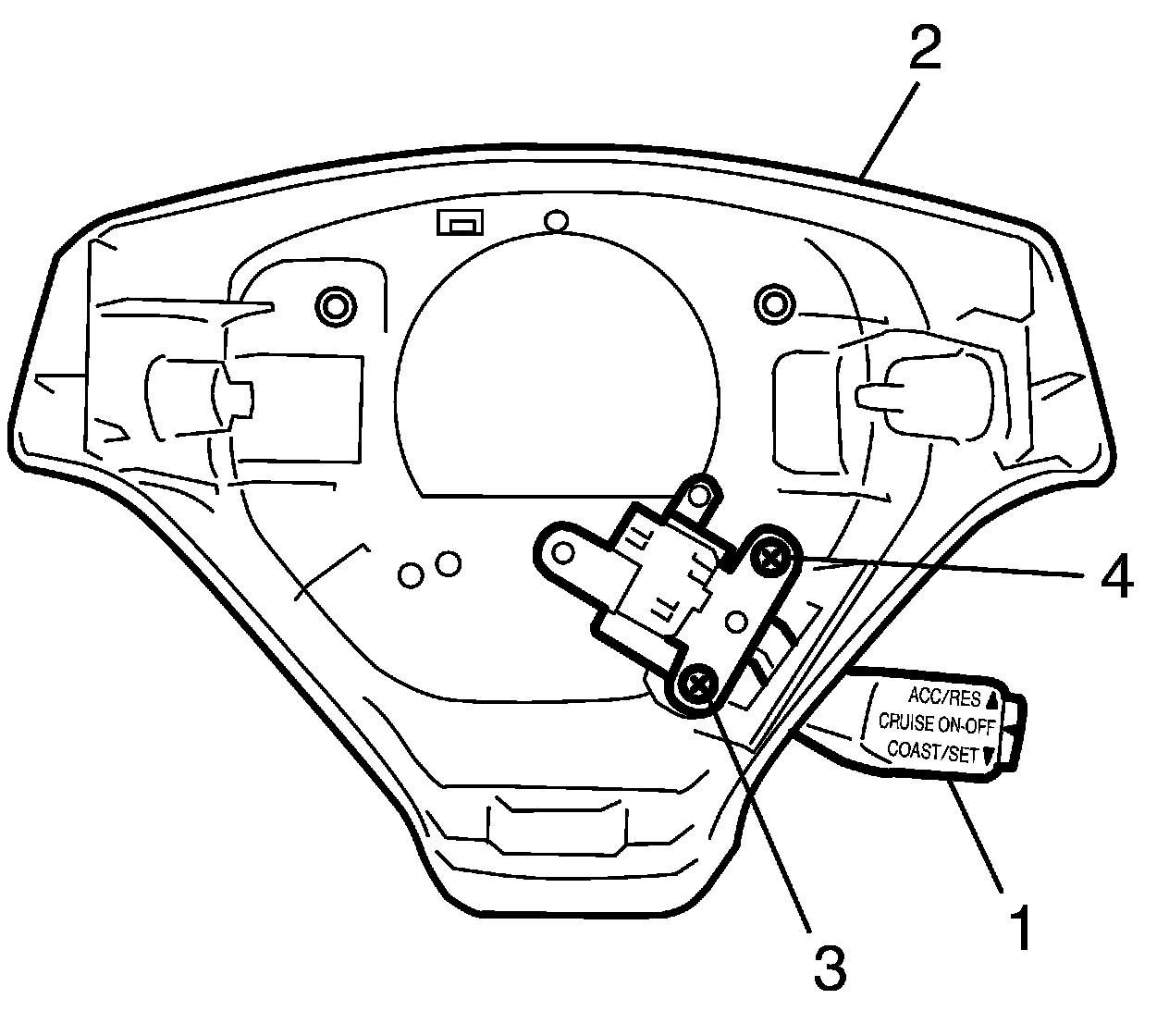

5. Remove cruise control lever (1) from steering wheel lower cover (2) removing cruise control lever bolt (3) and cruise control lever screw (4).

Installation

Reverse removal procedure to install cruise control lever noting the following.
- Install new steering wheel lower cover (1) to steering wheel (2).
- Tighten cruise control lever bolt (3), cruise control lever screw (4) and steering wheel lower cover screws as specified torque.




Tightening torque
Cruise control lever bolt (a): 1.0 N.m (0.10 kg.m, 0.7 lb.ft)
Cruise control lever screw and steering wheel lower cover screws (b): 0.85 N.m (0.085 kg.m, 0.60 lb.ft)
