Symptom Diagnostic Tables

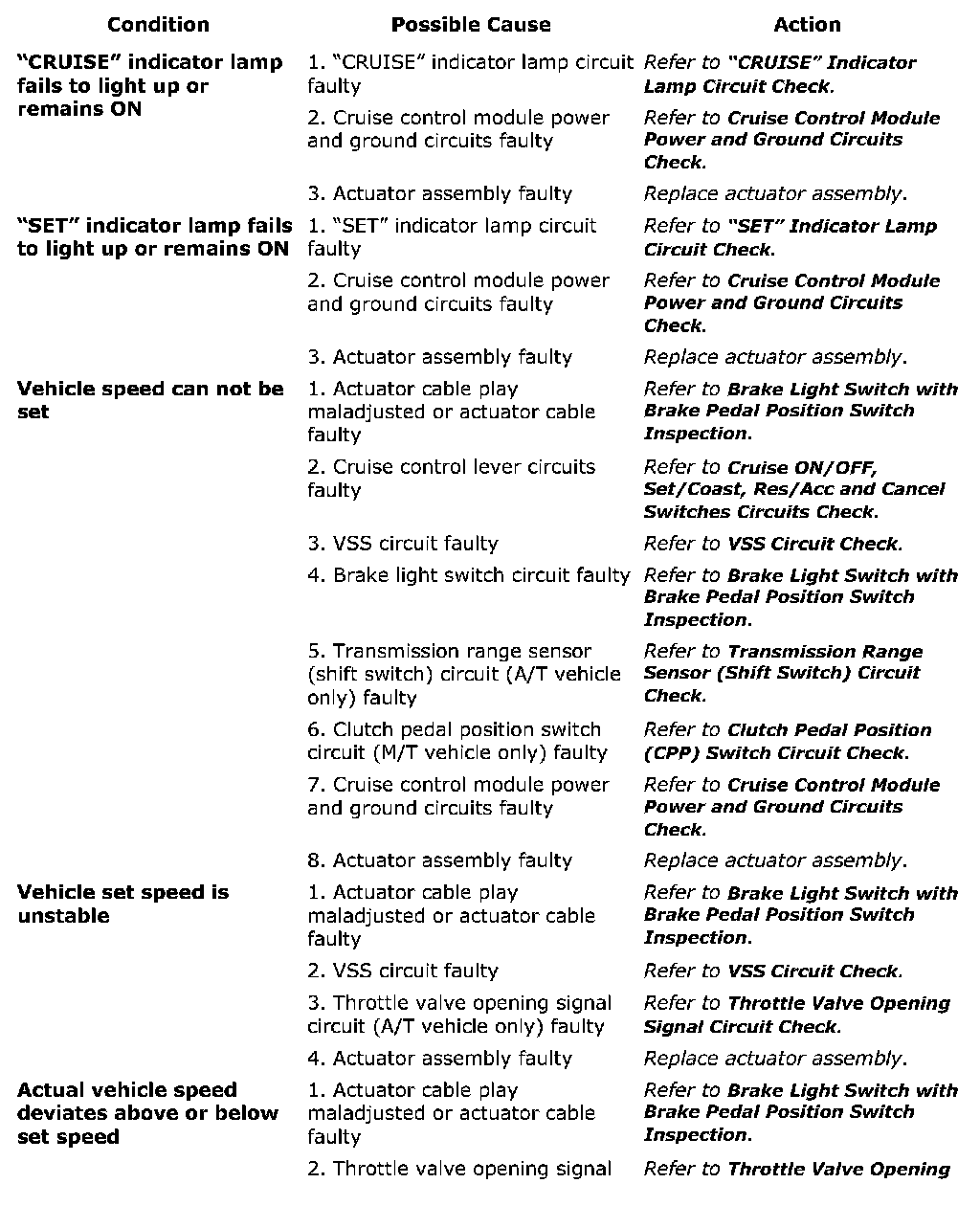

Cruise Control System Symptom Diagnosis Part 1:

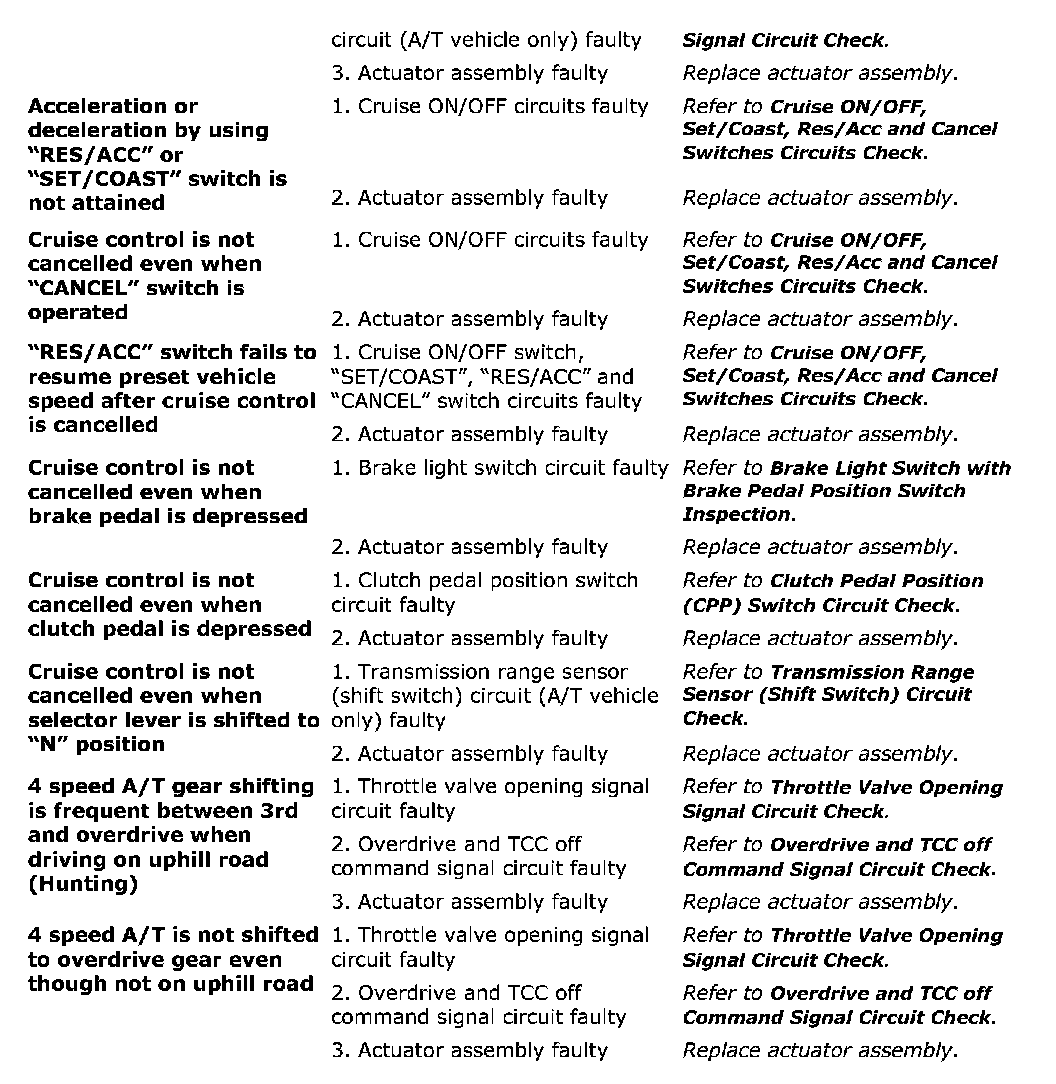

Cruise Control System Symptom Diagnosis Part 2:

Perform troubleshooting for each problem symptom, checking circuits involved in each symptom in the number order given.
