Combination Switch: Testing and Inspection

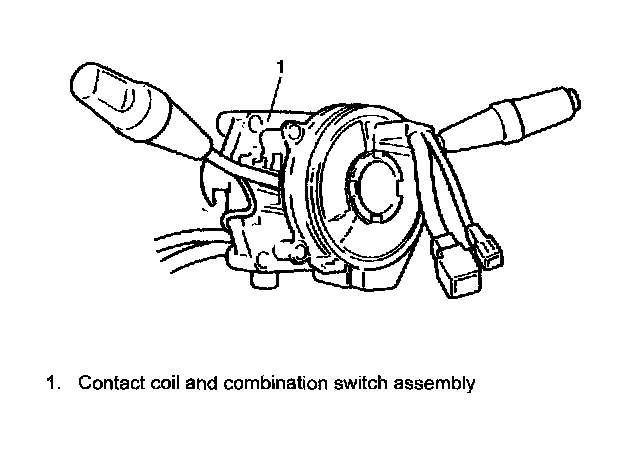

Contact Coil and Combination Switch Assembly Inspection

CAUTION: Do not turn contact coil (on combination switch) more than allowable number of turns (about two and a half turns from the center position clockwise or counterclockwise respectively), or coil will break.

Check contact coil and combination switch wire harness for any signs of scorching, melting or other damage. If it is damaged, replace.
