Fluid - A/T: Service and Repair
A/T Fluid Change1) Lift up vehicle.
2) With engine is cool, remove drain plug (1) from oil pan and drain A/T fluid.
3) Install drain plug (1).
4) Lower vehicle and fill proper amount of an equivalent of DEXRON-III.

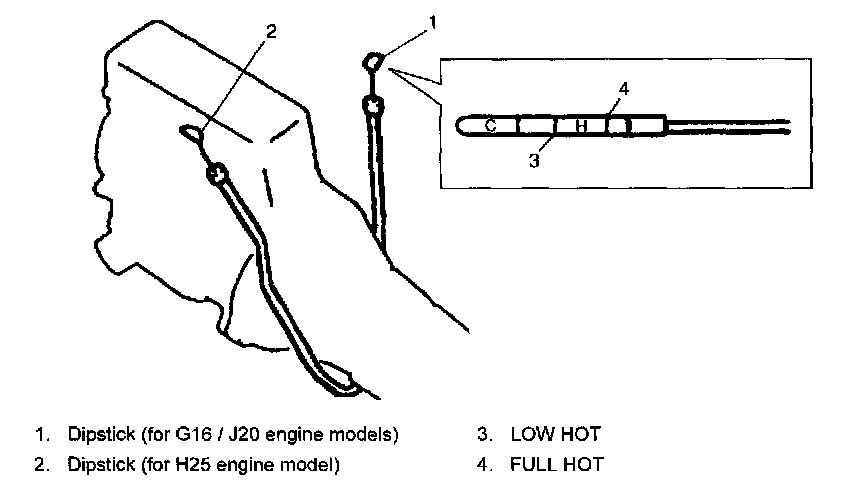

5) Check fluid level according to procedure described under "LEVEL CHECK AT NORMAL OPERATING TEMPERATURE" in "A/T Fluid Level Check:
Fluid specification An equivalent of DEXRON-III
Fluid capacity
When draining from drain plug hole:
4WD: 2.5 liters (5.28 / 4.40 US/Imp pt.)
2WD: 2.8 liters (5.92 / 4.93 US/Imp pt.)
When overhauling:
4WD: 6.9 liters (14.58 / 12.14 US/Imp pt.) for G16 engine model
2WD: 7.2 liters (15.21 / 12.67 US/Imp pt.) for G16 engine model
4WD: 7.1 liters (15.00 / 12.50 US/Imp pt.) for J20 / H25 engine models
2WD: 7.4 liters (15.64 / 13.02 US/Imp pt.) for J20 / H25 engine models
