Power and Ground Distribution: Service and Repair

The content of this article/image reflects the changes identified in TSB-TS08 06203

SUBJECT
AVAILABILITY OF 100 AMP MAIN FUSE

MODEL(S):
GRAND VITARA (SQ625), XL-7 (JA627)

YEAR:
2003

CONDITION:
Replacing positive battery cable because 100 amp fuse is open.

CORRECTION:

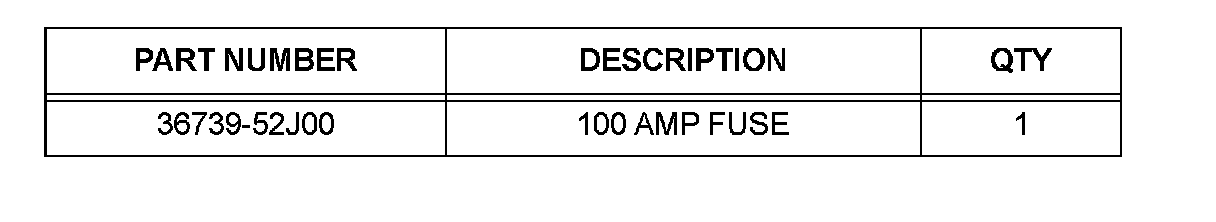

Replacing positive battery cable with fuse is no longer necessary. The 100 main amp fuse is now available separately.
