Idle Speed/Throttle Actuator - Electronic: Service and Repair

Idle Air Control (IAC) Valve

Removal
1. Disconnect battery negative cable at battery.
2. Disconnect IAC valve connector.

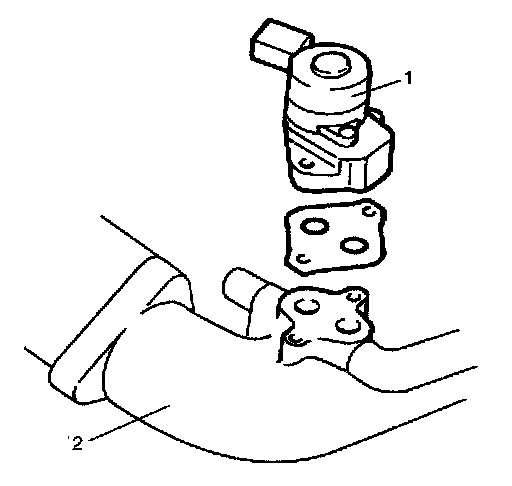

3. Remove IAC valve (1) from intake collector (2).

Installation
For installation, reverse removal procedure and note the followings.

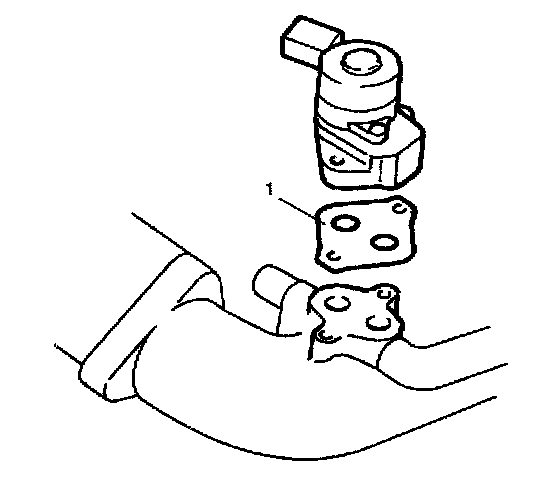

- Use new gaskets (1).
