Cylinder Head Bolts

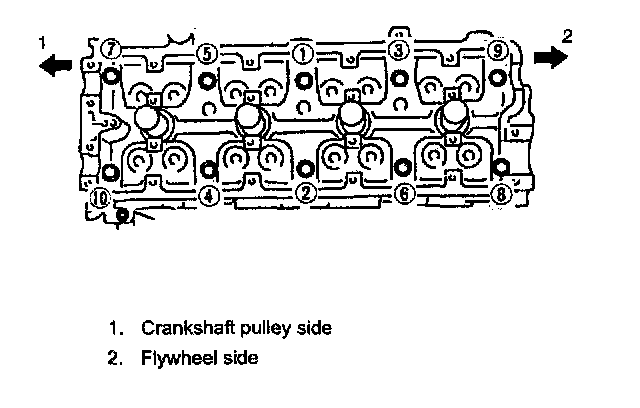

a. Tighten all bolts to 53 Nm (5.3 kgf-m, 38.5 ft. lbs.) according to numerical order (1-10).
b. In the same manner as in step a., tighten them to 84 Nm (8.4 kgf-m, 61.0 ft. lbs.)
