Alternator Brush: Testing and Inspection
Brush and brush holder60 A / 70 A Types
Check each brush for wear by measuring its length. If brush is found worn down to service limit, replace brush.

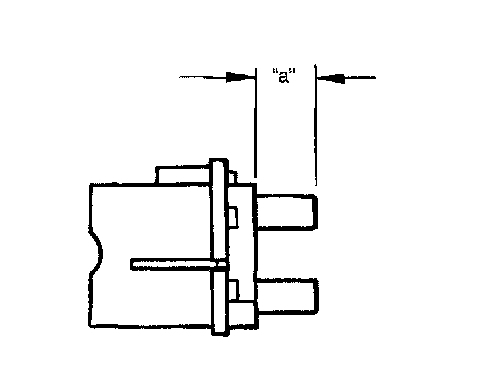

Brush length "a" (for 60 / 70 A types)
Standard: 16 mm (0.63 in.)
Limit: 2 mm (0.08 in.)
80 A Types
Check each brush for wear by measuring its length as shown. If brush is found worn down to service limit, replace brush.

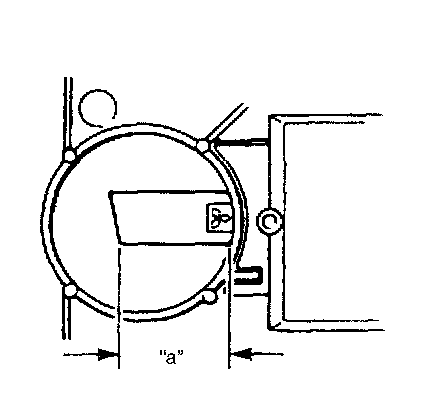

Exposed brush length "a" (for 80 A type)
Standard: 10.5 mm (0.413 in.)
Limit: 4.5 mm (0.177 in.)
