Procedures

Quarter Window Removal and Installation
Refer to "Windshield Removal and Installation: "procedures and cautions are basically the same. However, note the following.

NOTE:
- Before applying primer to glass edge, install molding according to installing position shown in the figure.
- Observe the following precautions when applying adhesive along glass edge.
- Adhesive should be applied evenly especially in height.
- Be careful not to damage primer.
- Press glass against body quickly after adhesive is applied

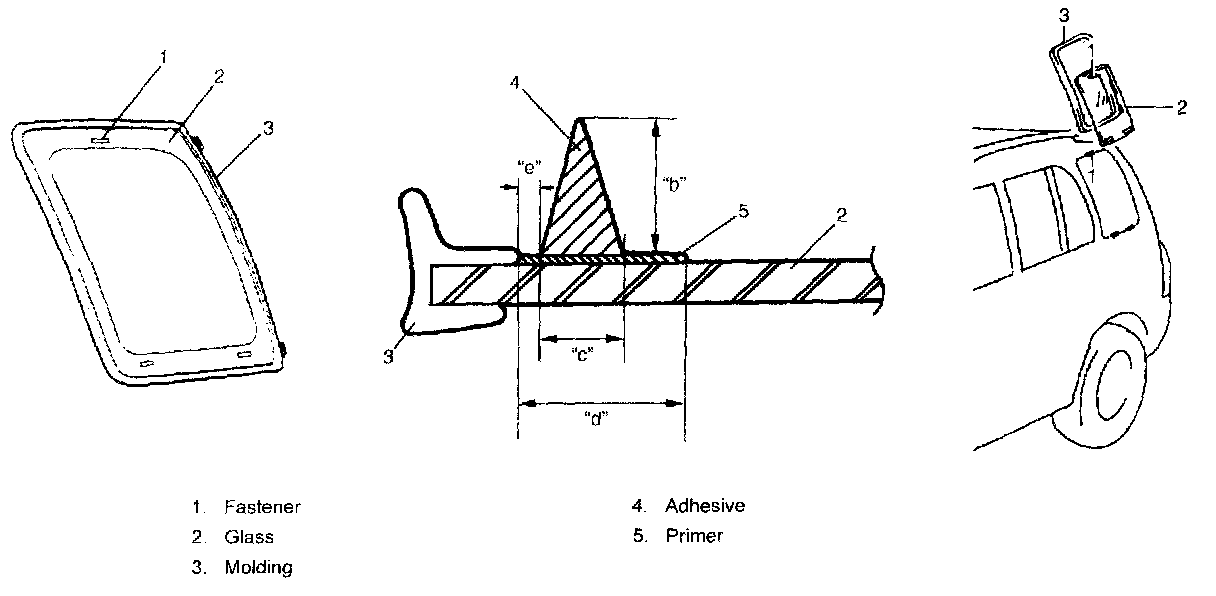

Adhesive Amount Specification:

Adhesive amount specification (quarter window)
Height "b": 12 mm (0.47 in.)
Width "c": 8 mm (0.31 in.)
Width "d": 16 mm (0.63 in.)
Clearance "e": 1 mm (0.04 in.)
