Convertible Top: Service and Repair
Canvas Top And Topbow Frames Removal And InstallationRemoval 1.
Open canvas to referring to Owner's Manual.
2.
Remove fording top and rear canvas top.
3.

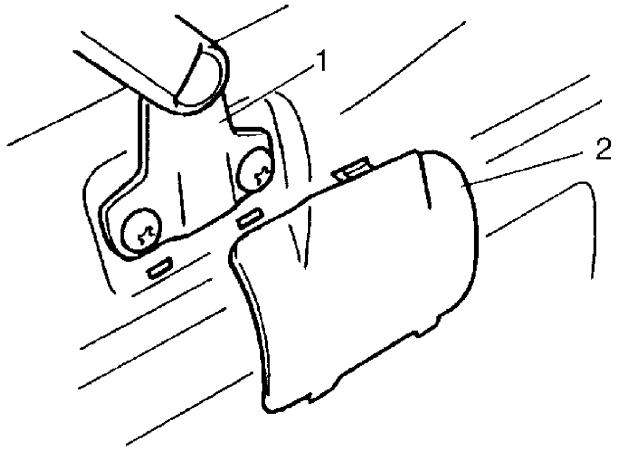

Remove topbow bracket cover (2).
4.

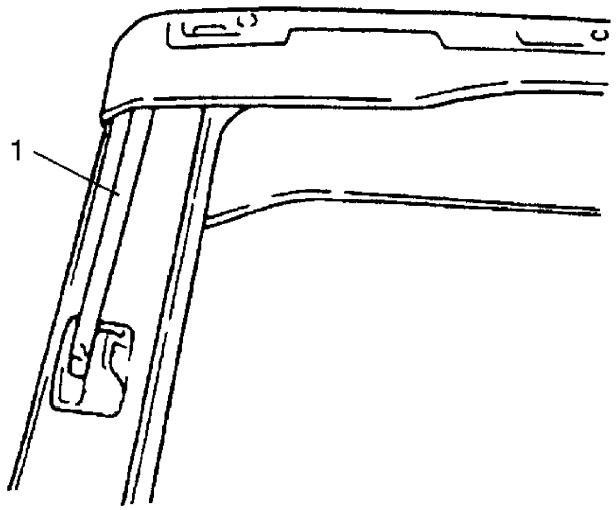

Remove topbow center
frame (1).
5.
Remove topbow front
frame (1).
InstallationInstall in reverse order of removal procedure.
