Cooling Fan

Removal
1. Disconnect negative cable at battery.
2. Loosen adjusting bolt (1) and pivot bolt (2).
3. Slacken belt by displacing fan pulley.
4. Remove cooling fan. Just detach the fan / clutch from fan pulley.





5. Remove cooling fan belt (3).

Installation
1. Install belt to fan pulley and crankshaft pulley.
2. Install cooling fan.
3. Adjust belt tension as specified.
4. Tighten adjusting bolt and pivot bolt.
5. Connect negative cable at battery.

Inspection
^ Inspect belt for cracks, cuts, deformation, wear and cleanliness. If any of conditions are found replace generator belt.

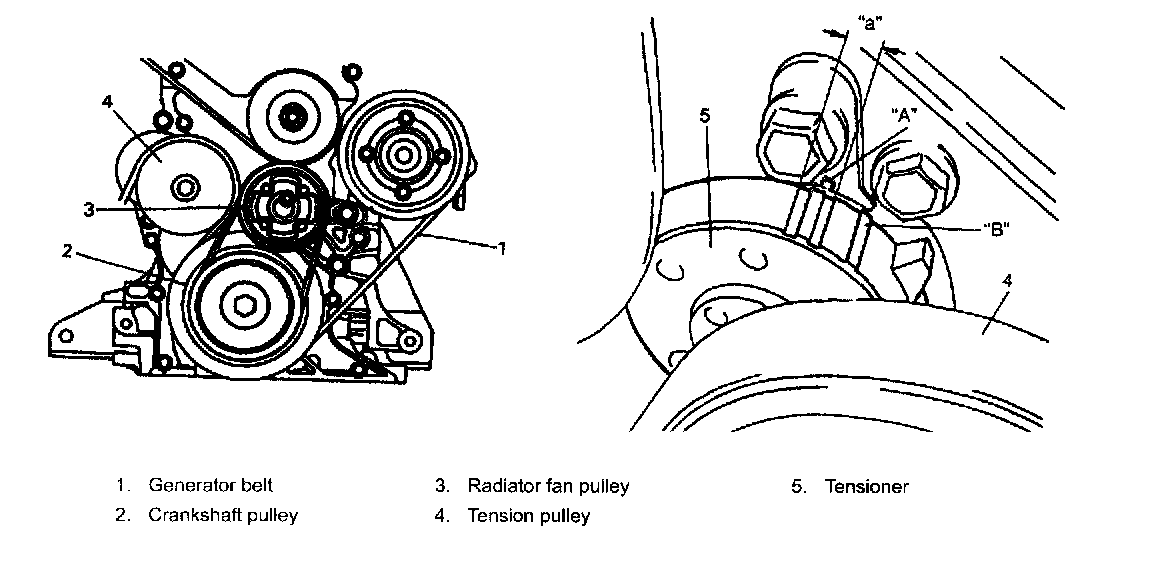

^ Check to make sure that tension indicators are as follows in the figure by using mirror.
a. If the tension indicator "B" is found to the left of the indicator "A", replace the generator belt.
b. If new generator belt has been installed, indicator "A" should be within "a" of the figure. If it isn't, it means that belt is not installed properly. Reinstall it properly.
