Engine - Timing Cover Resealing Revision

Division: Automotive
Category: Technical

Section Title: Engine
TSB No. TS 12 01074

SUBJECT:
SERVICE MANUAL UPDATE FOR RESEALING FRONT TIMING CHAIN COVER.

MODEL(S):
VITARA (5Q420), GRAND VITARA (5Q625), & GRAND VITARA XL-7 (JA 627)

YEAR:
1999-2004

CONDITION:
Oil leaking from timing chain cover.

CORRECTION:

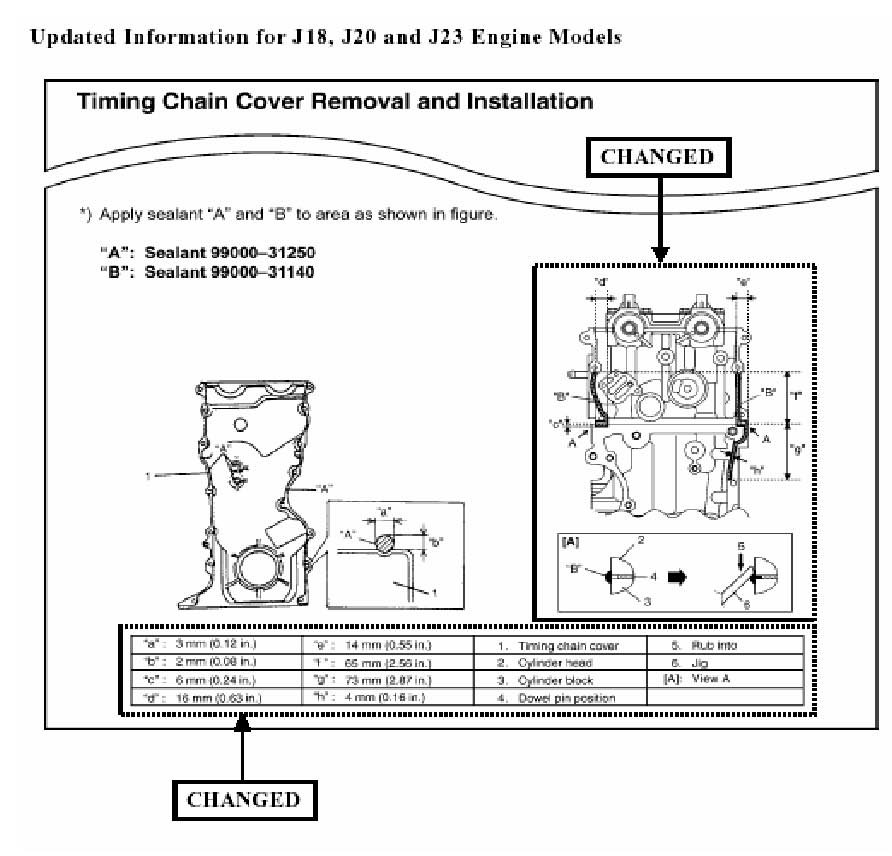

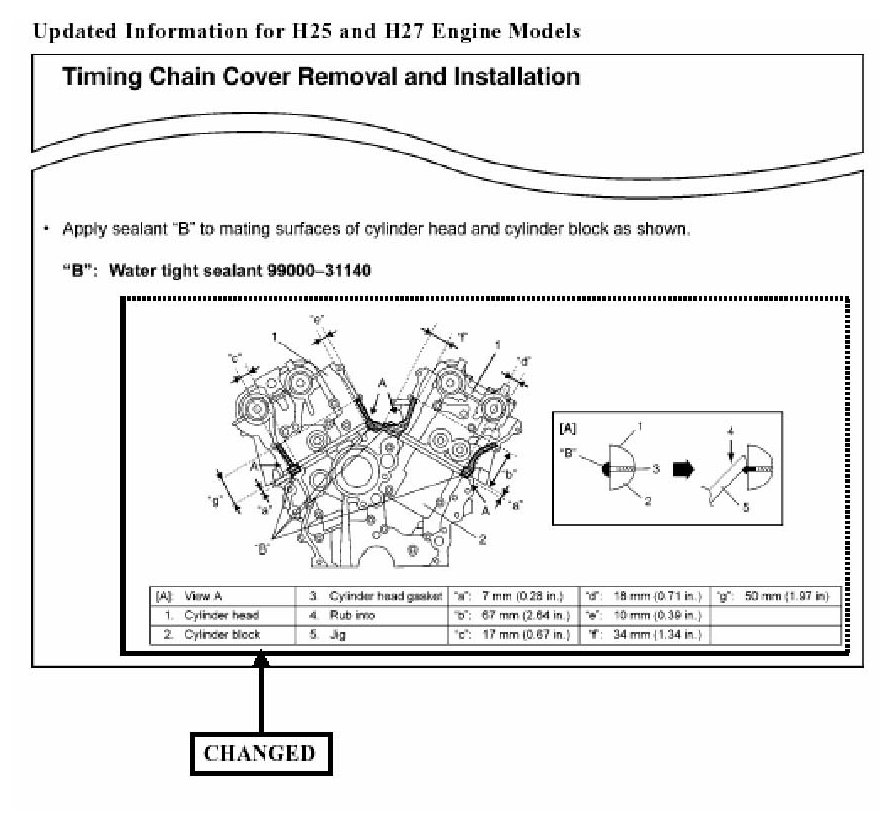

The sealant application area for Suzuki Bond No. 1207B part no. 99104-31140 has been increased. Please update affected service manuals.
